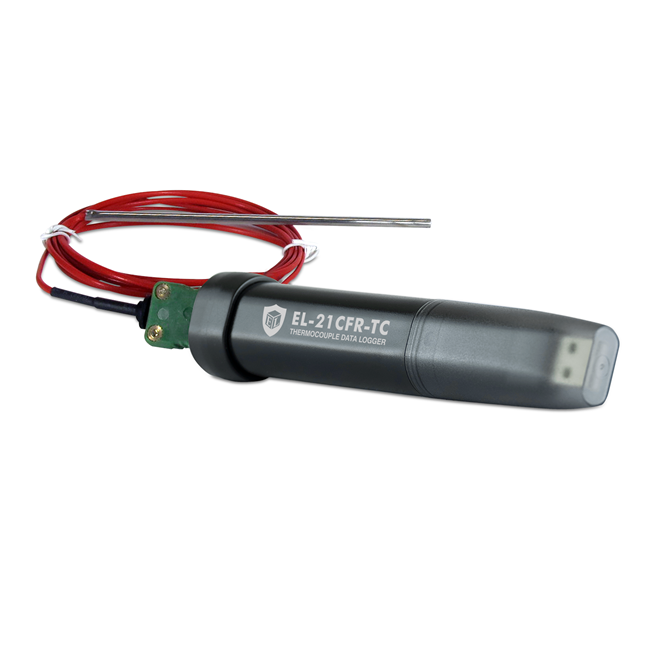

Lascar EL-21CFR-TC, K, J Thermocouple Data Logger
This 21CFR compliant, standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box is from 0 to +200°C (-32 to +392°F).
Used in conjunction with the 21CFR Part 11 software, the logger enjoys all of the core offerings of the original EasyLog software, but with additional 21CFR characteristics including user permissions, encrypted data which cannot be edited, full audit trail and electronic signatures for all activity.
EasyLog USB is compatible with the following 32bit and 64bit operating systems (other operating systems
are currently not supported):
- Microsoft Windows 7
- Microsoft Windows 8.1
- Microsoft Windows 10 (32bit and 64bit)
Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port.
The EL-21CFR-TC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include:
- Food & Drink
- Oven Monitoring
- Dry Ice Shipments
|General Description||The EL-21CFR-TC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include Food & Drink, Laboratory, Oven Monitoring, Dry Ice Shipments. Logging Rate: User selectable between 1 second and 12 hours|
|Accuracy||±1°C / ±2°F (data logger only - thermocouple error not included)|
|Input / Ranges||Measurement Range K type (provided) 0 to 200°C (32 to 392°F) Measurement Range K type -200 to +1350°C / -328 to +2462°F Measurement Range J type -200 to +1190°C / -328 to +2174°F Measurement Range T type -200 to +390°C / -328 to +734°F|
|Power Consumption||2 year battery life (at 25°C and 1 minute logging rate)|
|Power Supply||1/2 AA battery (supplied)|
|Thermocouple Type||K or J|
|Accessories||Wall Mount Clip Included|
|Stability vs amb temp||Long term stability <0.25%RH / year|
EasyLog 21 CFR USB Data Logger Software Setup from Lascar Electronics
Learn about Lascar's new EasyLog 21 CFR USB Data Logger an administrator based system with encrypted data that has full audit tracking to comply with the requirements of 21CFR Part 11. The product is equipped with a LCD screen and ranges of temperature, humidity, dew point and probe data loggers.
