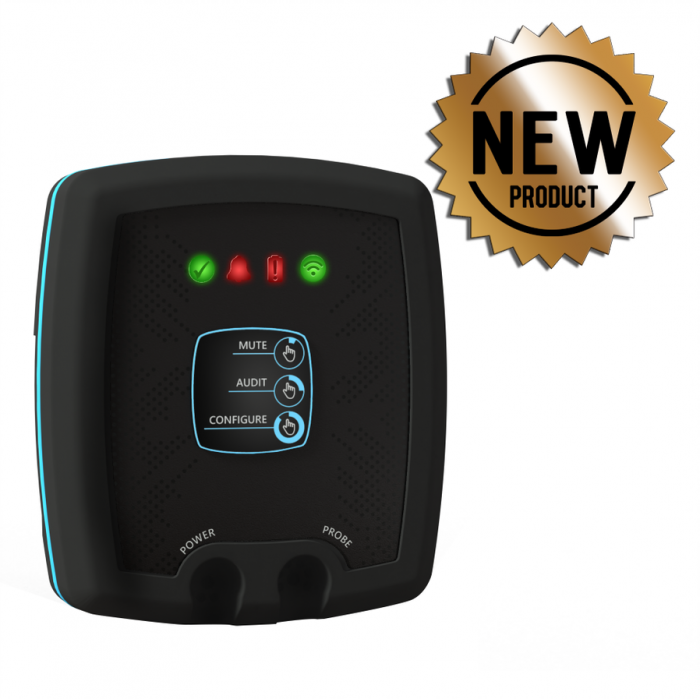

Lascar EL-IOT-1 WiFi Temperature Data Logger

Change Currency

SKU
XE-4038-001
£69.59 £57.99
Lead TIme:
5 working days
Weight:
500g
Tariff Code:
90330000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:

The EL-IOT-1 is an ambient temperature, Cloud-connected WiFi data logger. The first product to be released from Lascar's brand new range of EL-IOT devices, it sets a new standard for low-cost data loggers with a list price of only £57.99. Compared with our other WiFi temperature monitoring devices starting at £75, it's a significant saving.

The versatile new EL-IOT-1 is packed full of helpful features to make sure temperature changes are never missed. Easily set up your device in the EasyLog App, with configuration and data analysis available in the EasyLog Cloud, making the EL-IOT-1 even easier to use than ever.

Key Features:

  • Internal temperature sensor with -20°C to 60°C measurement range
  • Accuracy: +/- 0.5°C
  • Uploads data to the EasyLog Cloud
  • Status indicators and sounder
  • Set up your own alarms and notifications
  • Create audit marks at the push of a button
  • Easy set up using the EasyLog App
  • Built-in sounder alarm
  • LEDs for at-a-glance status indication
  • Email and SMS notifications straight to your phone or internet-connected device
  • Typical battery life over 1 year, or can be permanently powered
Model EL-IOT-1
General Description Cloud Storage Data Logger
Communications Protocol WiFi
Accuracy +/- 0.5°C (+/- 0.9°F)
Readings 100,000 readings internal memory
Resolution 0.1°C
Logging Interval 10 seconds to 12 hours (user selectable)
Battery Supplied with a ½ AA battery. Battery life: 2 years
Connector Type Plug
Connector Size Miniature (moulded-on)
Dimensions 94 x 83 x 31 mm
Element/hot junction Single element, grounded junction offering fast response
Max. Temperature +80°C (176°F)
Min. Temperature -35°C (-31°F)
Temperature Range -100 to +100°C (-148 to +212°F)
Operating Temperature -18 to 60°C (0 to 140°F) on battery power. -20 to 60°C (-4°F to 140°F) with power supply
Probe Diameter 3.3mm
Probe Length 80mm
Probe Material Needle point tip, 316 stainless steel
Power Consumption Battery life: 2 years (at 25°C and 1 minute logging rate, LCD on)
Power Supply 4 x AA 1.5V batteries or via mains supply
Sensor Type Mineral insulated
Standards Met IP54 (splash proof)
Thermocouple Type K
Termination Type Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification
