Miniature Quick Wire Thermocouple Connector Socket JM-E-FQ Type E JIS

Change Currency

SKU
XE-9243-001
£3.30 £2.75
  • Buy 2 - 9 for  £2.40 £2.00 each
  • Buy 10 - 99 for  £2.04 £1.70 each
  • Buy 100+ for  £1.92 £1.60 each
Lead Time:
In-Stock
Weight:
5g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

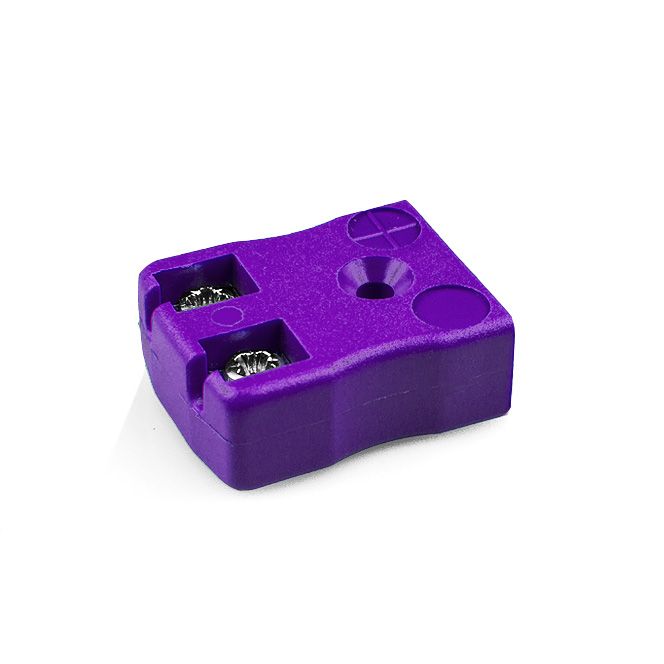

Miniature Quick Wire Connector Thermocouple Socket JM-E-FQ Type E JIS

Easy jab-in connection, just push in wire & tighten screw. Contacts are polarised to prevent incorrect termination.

Specifications

General DescriptionEasy jab-in connection, just push in wire & tighten screw.
Thermocouple TypeE JIS
Connector TypeQuick Wire Socket
Connector SizeMiniature
ColourViolet
Max. Temperature220°C
+Positive ContactNickel Chromium
-Negative ContactCopper Nickel
Standards MetBS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Quick Wire Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
