Miniature Rectangular Fascia Socket Thermocouple Connector AM-E-FF Type E ANSI

Change Currency

SKU
XE-9037-001
£5.36 £4.47
  • Buy 2 - 9 for £3.66 £3.05 each and save 32%
  • Buy 10 - 99 for £3.11 £2.59 each and save 42%
  • Buy 100+ for £2.93 £2.44 each and save 45%
Lead Time:
In-Stock
Weight:
5g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

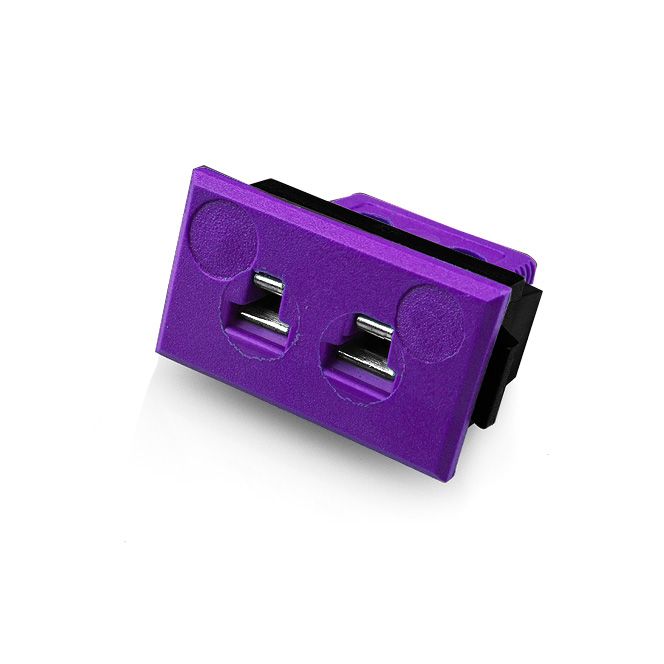

Miniature Rectangular Thermocouple Connector Fascia Socket AM-E-FF Type E ANSI

Nylon clip for quick, simple fixing to panel. All fascia mounting sockets are polarised by means of unequally sized pins

Specifications

General Description All fascia mounting sockets are polarised by means of unequally sized pins
Thermocouple Type E ANSI
Connector Type Fascia mounting socket
Connector Size Miniature
Colour Violet
Dimensions See Schematic Drawing (Product Literature Tab)
Max. Temperature 120°C
+Positive Contact Nickel Chromium
-Negative Contact Copper Nickel
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Rectangular Thermocouple Connector Fascia Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
