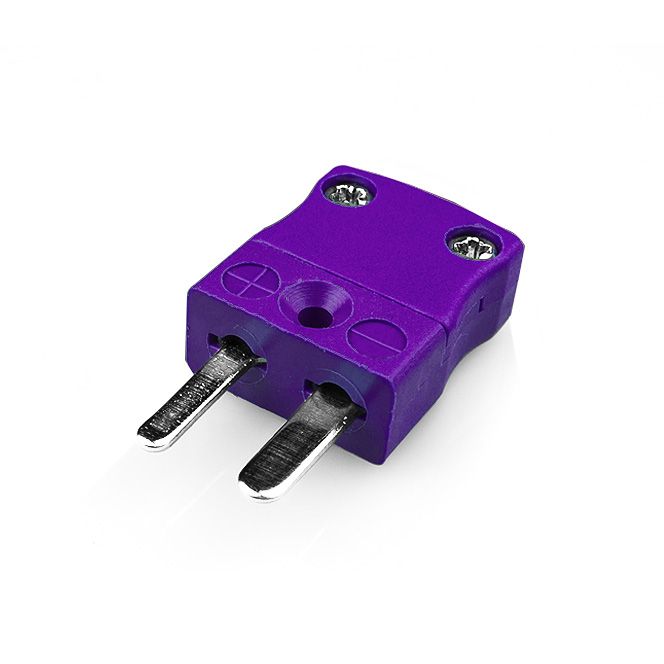

Miniature Thermocouple Connector Plug AM-E-M Type E ANSI

Change Currency

SKU
XE-9030-001
£2.77 £2.31
  • Buy 2 for £2.10 £1.75 each
  • Buy 10 for £1.92 £1.60 each
  • Buy 50 for £1.67 £1.39 each
Lead Time:
In-Stock
Weight:
6g
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Miniature Thermocouple Connector Plug AM-E-M Type E ANSI

With flat pins to suit thermocouple type and ideal for general purpose use, all contacts are polarised to ensure correct connection. These connectors will accept thermocouple cable up to 4mm in diameter.

Specifications

General DescriptionIdeal for general purpose use. Contacts are polarised to ensure correct connection.
Thermocouple TypeE ANSI
Connector TypePlug
Connector SizeMiniature
ColourViolet
Max. Temperature220°C
PinsFlat Pins
+Positive ContactNickel Chromium
-Negative ContactCopper Nickel
Standards MetBS EN 50212:1997. RoHS

3D Animation

3D Animation of Miniature Thermocouple Connector Plug From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
