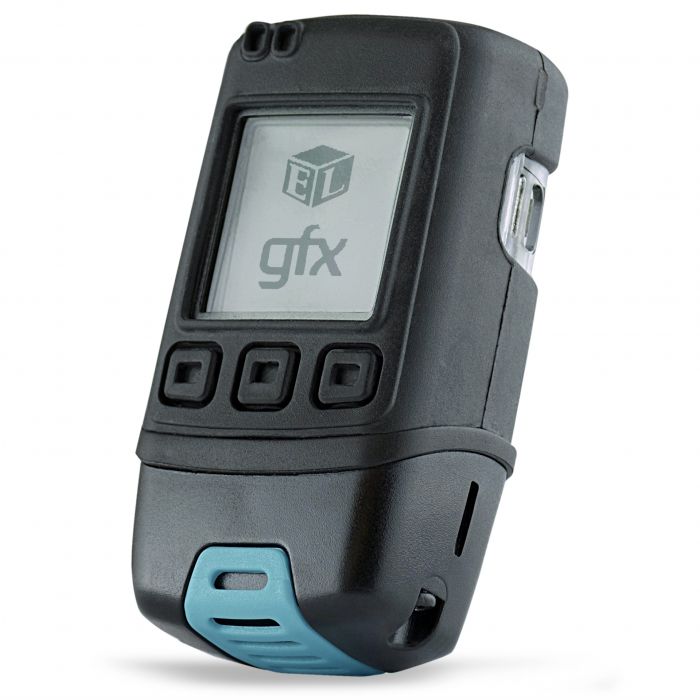

Lascar EL-GFX-2 - Temperature & Relative Humidity Data Logger with Graphic Screen

Change Currency

SKU
XE-4031-001
£145.19 £120.99
Lead Time:
7 - 10 working days
Weight:
700g
Tariff Code:
90251900
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

This USB data logger records over 250,000 temperature and relative humidity readings in one or more sessions for up to 1 year. Inside the rugged IP67 / NEMA 4X case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. The EasyLog USB software enables quick configuration and data download via the USB port. Supplied with two batteries, mounting clip and micro USB cable.

The EL-GFX-2 is suitable for a wide variety of applications. These include:

  • Pharmaceutical fridge monitoring
  • Transportation
  • Food & drink
  • Building & site monitoring
  • HVAC
General Description This USB data logger records over 250,000 temperature and relative humidity readings in one or more sessions for up to 1 year
Type Data Logger with graphic screen
Accuracy Temp (overall error): ± 0.35°C (0.59°F) typical (5 to 60°C) RH (overall error): 2.05%RH typical (20 to 80%RH)
Input / Ranges Temperature Measurement Range: -30°C to 80°C (-22°F to 176°F) Relative Humidity Measurement Range: 0 to 100%RH
Internal Resolution 0.1°C (0.1°F) / 0.1%RH
Long Term Stability <0.02°C (0.04°F) per year / <0.25%RH per year
Resolution of data display High contrast dot-matrix LCD
Dimensions 88 x 48.5 x 30.5mm (3.46 x 1.90 x 1.20”)
Power Consumption Battery Life: 4 months
Power Supply BAT 3V6 1/2AA (included)
Maintenance Logging rate: User selectable between 10 seconds and 1 hour
