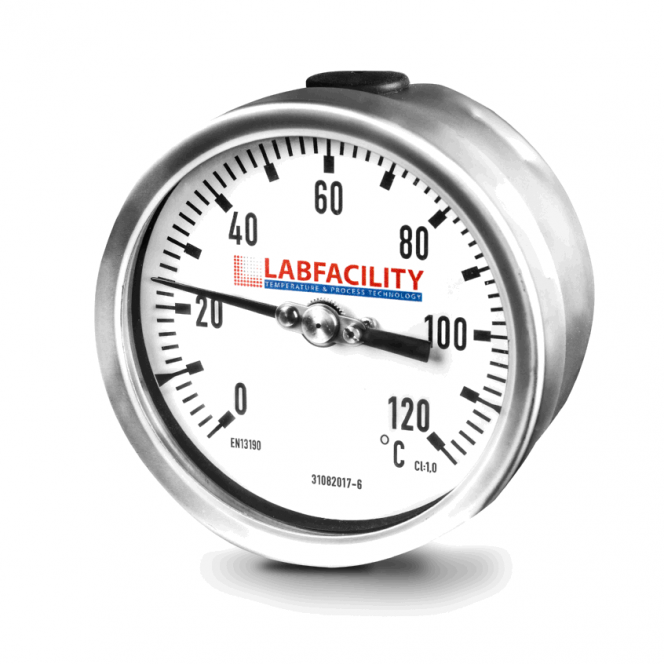

Bi-Metal Thermometer Temperature Gauges - Back Entry Style Without Pocket

Change Currency

SKU
XE-0600
£104.47 £87.06
Lead Time:
Select Options
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

**Chemical–Boilers–Ovens–Freezers–Tankers-Food-Drinks-Dairy-Brewing-Temperature Controlled Environments**

For stem diameter sizes other than 8mm, please use our custom build form using the blue button above to request a quotation.

Rugged industrial class 1, stainless steel case and bayonet bezel with 316 stainless steel stems. Manufactured in 100mm face sizes with Various lengths and diameters available. Temperature Ranges from -20°C to 200°C.

  • 1 year guarantee offered for working parts / default. Micro adjustable pointer
  • Optional Certificate of Calibration
  • Optional parallel, tapered or NPT thread stainless steel compression fittings.
  • Custom made to order in approximately 4 weeks. You will be contacted after placing your order with a lead time for delivery.

Specifications

Accuracy Class 1 (1% F.S..D.)
Dial Size 100mm
Construction Flush fitting bayonet locking case and bezel
Measuring Element Bi-Metalic coil
Ranges °C -20 to +40°C, 0 to +100°C, 0 to +120°C, 0 to +200°C
Over Limit Range 130% full scale
Stem / Bulb 316 Stainless steel
Case / Bezel ring Stainless steel AISI 316L
Window Glass
Dial Aluminium, black figures on white
Pointer Aluminium, black
Movement Direct drive on back entry
Ambient Temperature -10°C....+50°C
Temperature Effect max...0,3% / 10°C
Protection EN 60 529 IP65
