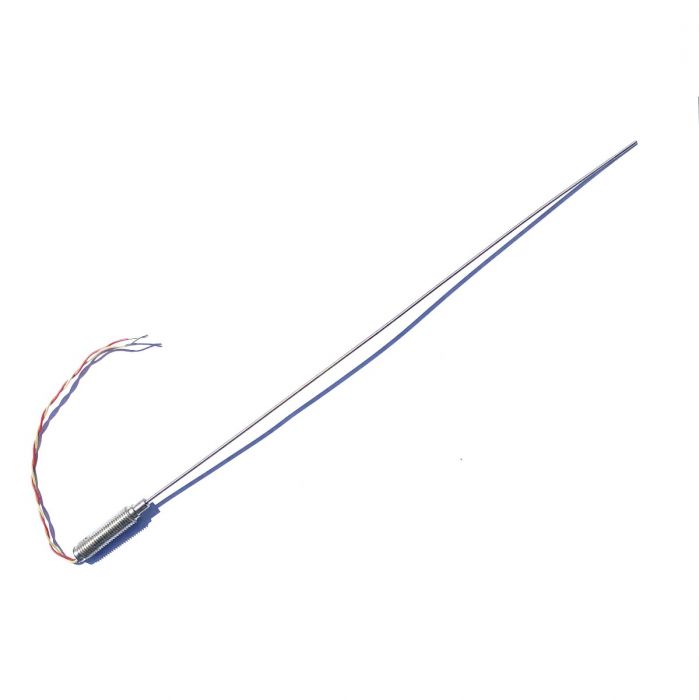

0.25mm Diameter Fast Response Mineral Insulated Thermocouple with Threaded Pot & PFA ANSI Tails - Type K
Change Currency
Please use our custom sensor forms to submit your requirements for various lengths of MI and Cable lengths.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Type K ANSI MD STYLE probes 0.25mm |
| Thermocouple Junction | Single element, junction insulated or grounded |
| Probe Length | 100mm / 150mm / 250mm |
| Sheath Material | Stainless steel 316 sheath |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm PFA insulated twin twisted ANSI - 7/0.2mm |
| Range | Sensor range -40 to +260°C |
| Important Information | A 1%+ Length Tolerance applies |
