0.81mm Diameter with Miniature ANSI Plug – Insulated or Grounded
Change Currency
0.81mm Diameter with Miniature ANSI Plug – Insulated or Grounded

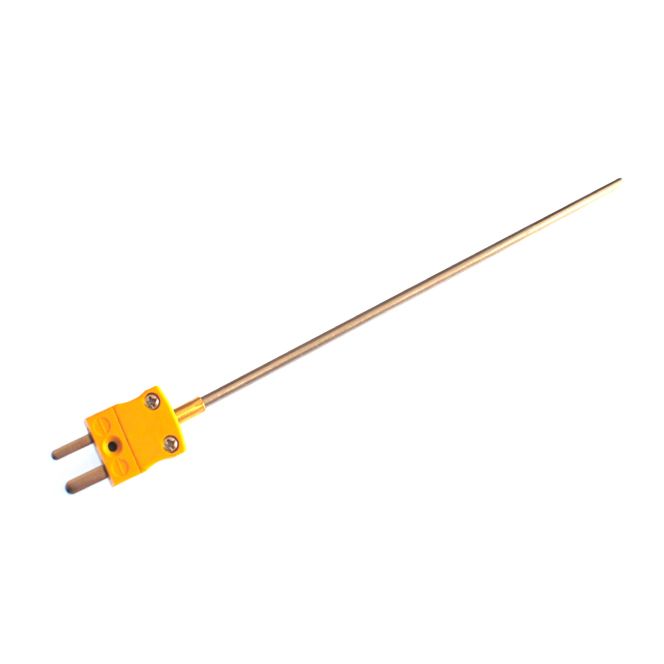

Type K with Miniature ANSI Plug in 316 stainless steel
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated or grounded from sheath |
| Probe Diameter | 0.81mm |
| Probe Length | 100, 150, 250 mm |
| Sheath Material | Inconel Sheath |
| Termination Type | Miniature flat pin plug, colour coded In accordance with ANSI MC96.1 |
| Max. Temperature | +650°C. Plug Max. temperature range: 200°C |
| Min. Temperature | -40°C |
| Tolerance | Class 1 |
| Standards Met | ANSI MC96.1 |
| Connector Type | Plug |
| Connection Type | Miniature |
