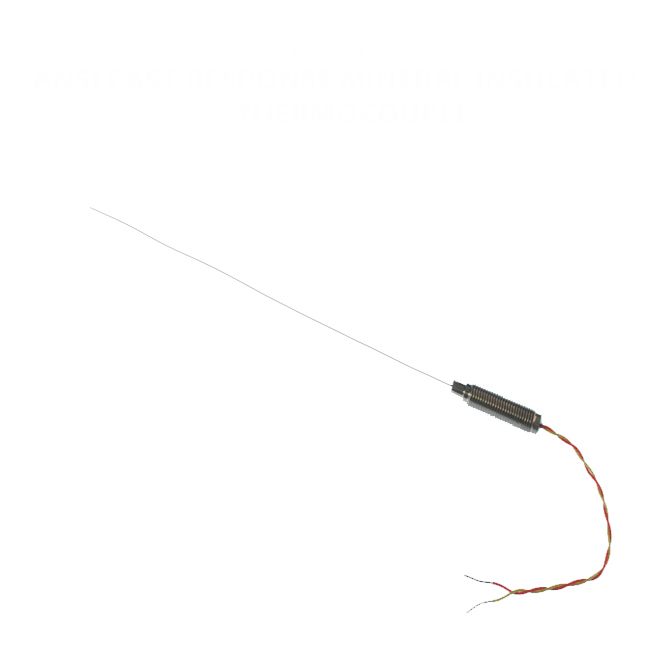

0.81mm Diameter with threaded pot & tails – Insulated or Grounded
Type K with threaded pot & tails in 316 stainless steel
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Type K with threaded pot & tails in 316 stainless steel |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K |
| Element/hot junction | Single element, junction insulated or grounded from sheath |
| Probe Diameter | 0.81mm |
| Probe Length | 100, 150, 250 mm |
| Sheath Material | Inconel Sheath |
| Pot Type | M8 x 1.0mm fine pitch threaded pot seal (200°C) |
| Cable Length | 100mm |
| Cable Type | PFA insulated twin twisted ANSI (Temp -75 TO +250°) |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | +650°C |
| Min. Temperature | -40°C |
| Tolerance | Class1 |
| Standards Met | In accordance with ANSI MC96.1 |
