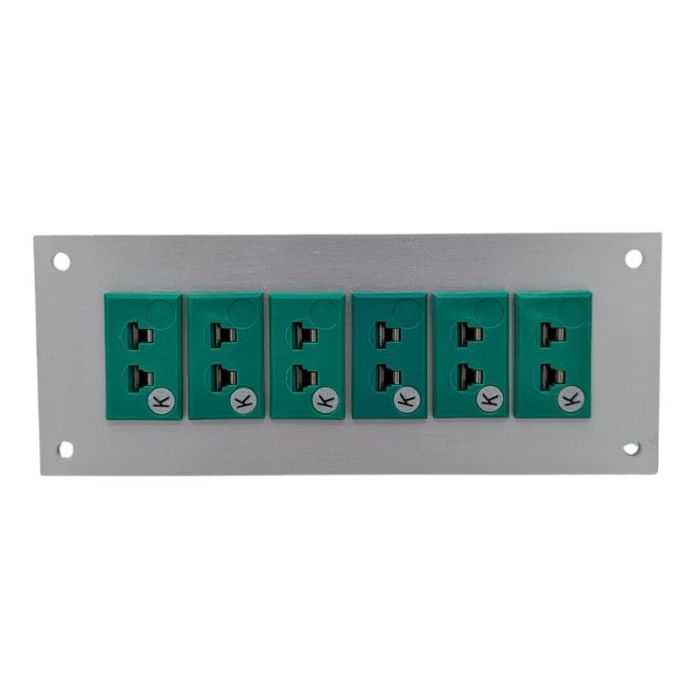

Thermocouple Connector Aluminium Panel with Type K IEC Miniature Sockets

Change Currency

£30.35 £25.29
Lead Time:
Select options
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

Pre-assembled Miniature Thermocouple Connector Panels

A range of pre-assembled miniature horizontal panel assemblies designed for use with thermocouples or leads with miniature plugs. They are robust and perfect for mounting in control rooms, test stands, laboratory applications, control rooms, and more. They support calibration codes including K, J, T & N with quick wire sockets and can accommodate 1-24 way circuits, with a maximum temperature range up to +120°C.

  • Supplied pre-fitted with Miniature Fascia Sockets
  • 1 – 24 ways circuits
  • Type K, J, T & N calibration available
  • Maximum temperature 120°C

 Typical Applications

  • OEMs
  • Instrumentation panel builders
  • Control rooms
  • Test Rigs and Skids

Sizing Chart

1 WAY - H45mm x W40mm 2 WAY - H45mm x W55mm 3 WAY - H45mm x W70mm 4 WAY - H45mm x W85mm
5 WAY - H45mm x W100mm 6 WAY - H45mm x W115mm 8 WAY - H45mm x W145mm 10 WAY - H45mm x W175mm
12 WAY - H45mm x W205mm 16 WAY - H75mm x W145mm 18 WAY - H75mm x W160mm 20 WAY - H75mm x W175mm
24 WAY - H75mm x W205mm



General Description A selection of miniature IEC pre-assembled thermocouple panels, 1-24 way, to suit your specific application.
Thermocouple Type K IEC
Connector Size Miniature
Connector Type Fascia Mounting Socket
Colour Green
Max. Temperature 120°C
+Positive Contact Nickel Chromium
-Negative Contact Nickel Alloy
Standards Met BS EN 50212:1997. RoHS

3D Animation of Miniature IEC Thermocouple Connector Fascia Socket From Labfacility

Miniature Rectangular Fascia Socket IEC - For more information please visit *Panel mounting *Clip for quick, simple fixing to panel *Max temperature 120 deg C About Labfacility Formed in 1971, Labfacility specialises in the field of Temperature and Process Measurement. We are the largest UK manufacturer of both temperature sensors and thermocouple connectors. Quality and Service are key elements in the continued growth of Labfacility; technical support is always freely available from our experienced technical sales teams and the company has ISO9001 accreditation. Labfacility specialises in the manufacture of Temperature Sensors, Thermocouple Connectors and Precision Electronic Thermometers (Tempmaster PRO & Labcal PRO), and also stocks a vast range of Thermocouple Wire and Cable. Visit
