PCB Mounting Thermocouple Connector Socket AM-B-PCB Type B ANSI

Change Currency

SKU
XE-9009-001
£4.37 £3.64
  • Buy 2 - 9 for £3.17 £2.64 each and save 27%
  • Buy 10 - 99 for £2.69 £2.24 each and save 38%
  • Buy 100+ for £2.53 £2.11 each and save 42%
Lead Time:
In-Stock
Weight:
5g
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

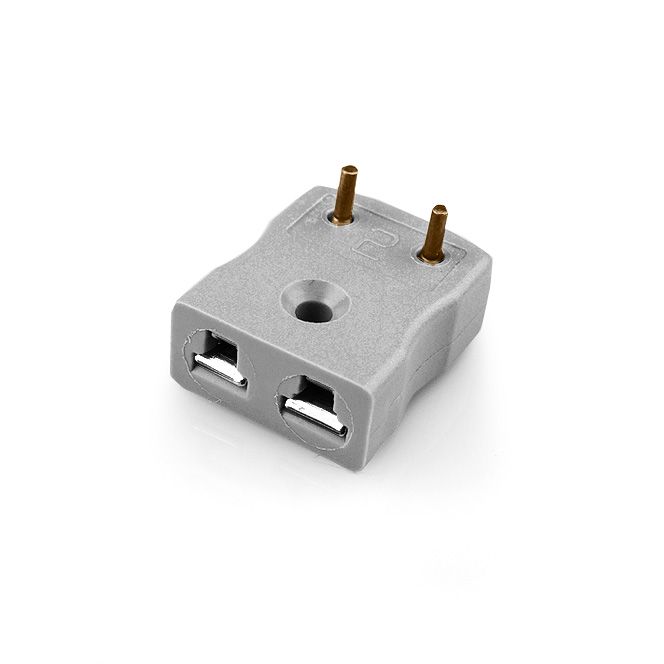

PCB Mounting Thermocouple Connector Socket AM-B-PCB Type B ANSI

Specially designed for PCBs, solid pins for direct board mounting & provision for CJC sensor

Specifications

General Description Versatile, high quality circuit board mounting miniature socket
Thermocouple Type B ANSI
Connector Type PCB socket
Connector Size Miniature
Colour Grey
Max. Temperature 220°C
+Positive Contact Copper
-Negative Contact Copper
Standards Met BS EN 50212:1997. RoHS

3D Animation

3D Animation of PCB Mounting Thermocouple Connector Socket From Labfacility



Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
