IEC Adjustable Bayonet Thermocouple, Glassfibre Stainless Steel Overbraided Cable - Type K,J
Change Currency
Adjustable Bayonet Thermocouple Type K or J IEC & Type J BS

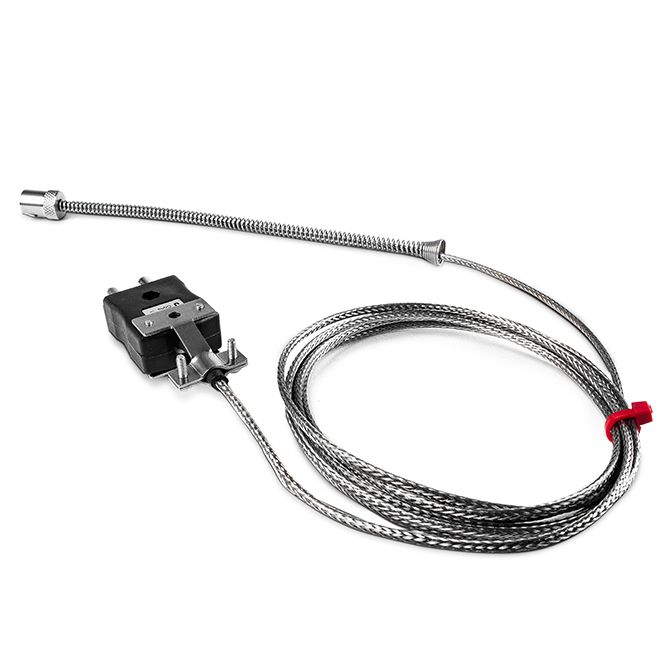

Adjustable Bayonet Thermocouple with 200mm spring with adjustable fixing cap (11.5mm I.D. single slot).
Specifications
| General Description | Thermocouple with adjustable insertion depth |
|---|---|
| Sensor Type | 6.0mm diameter tip |
| Thermocouple Type | K, J IEC J BS |
| Thermocouple Junction | Grounded tip for fast response |
| Cable Length | 2, 3m |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare wire or standard plug |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | IEC-584-3 / BS |
| Bayonet cap | 11.5mm I.D. single slot |
| Connector Type | Plug |
| Connector Size | Standard |
| Thread | M6 x 1mm thread |
| Spring | 200mm |
