ANSI Fabricated Tube Thermocouples with Crimp Seal and Lead Wire Type K

Change Currency

SKU
XE-7936
£23.11 £19.26
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

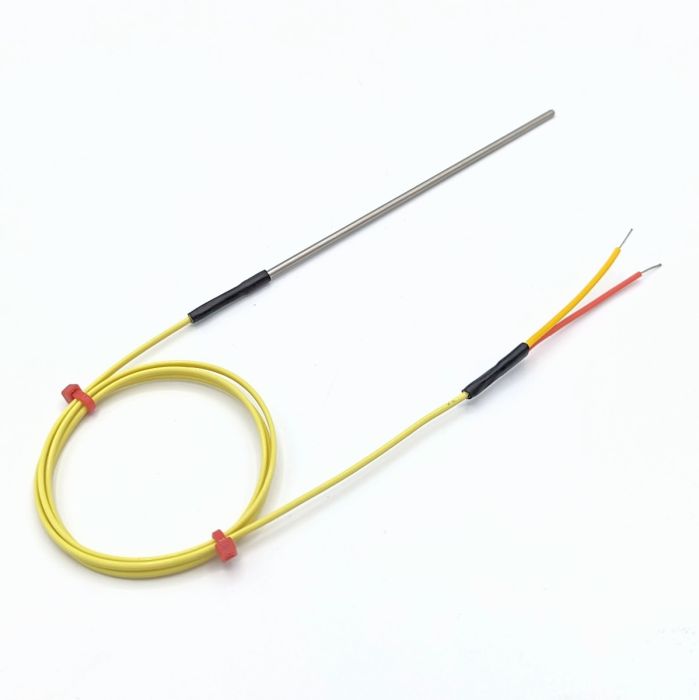

A fabricated ANSI thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.

These items have a measuring range of -75°C to +250°C and are available in ANSI Type K thermocouple calibration, with diameters of 3.0, 4.5 & 6mm 316 Stainless steel sheath, and standard lengths of 50, 100, 150 & 250 mm.

  • Class 1 Thermocouple accuracy
  • Sensor temperature rating -75°C to +250°C
  • 3.0, 4.5mm & 6mm 316 stainless steel sheath
  • 50, 100, 150 & 250mm standard lengths

Typical Applications

  • Industrial Process Control
  • Pipes or Ducts
  • Ovens and heating
  • General purpose

Specifications

General Description Fabricated ANSI Thermocouple with Rigid Stainless Steel Sheath with 1 metre PFA lead
Thermocouple Type ANSI Type K
Cable Length 1M
Cable Type PFA
Termination Type Stripped Wires
Sheath Length (mm) 50, 100, 150, 250
Sheath Diameter (mm) 3.0, 4.5, 6.0
Max. Temperature 250°C
Min. Temperature -75°C
Standards Met Class 1
Number of Wires 2
