ANSI Fine Wire Disc Thermocouple, PFA with Miniature Plug - Type K

Change Currency

SKU
XE-0567
£13.34 £11.12
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

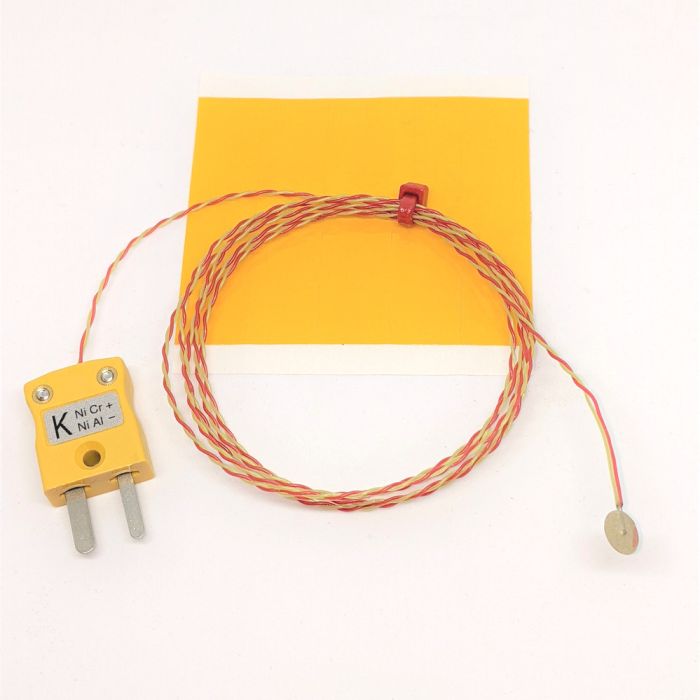

General Description Exposed junction thermocouple with Copper Disc brazed at tip
Sensor Type Copper disc, 6.35mm diameter x 0.3mm thick
Thermocouple Type Type K
Thermocouple Junction Grounded measuring junction
Cable Length 1m, 2m, 5m
Cable Type 1/0.2mm PFA Teflon® insulated twisted wire
Termination Type Miniature Plug or Bare tails
Max. Temperature 200°C
Min. Temperature 0°C
Standards Met ANSI MC96.1
Colour Positive: Yellow / Negative: Red
Accessories Supplied with high temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process
