ANSI Thermocouple Brake Pad Temperature Sensors - Type K

Change Currency

SKU
XE-0596
£16.70 £13.92
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

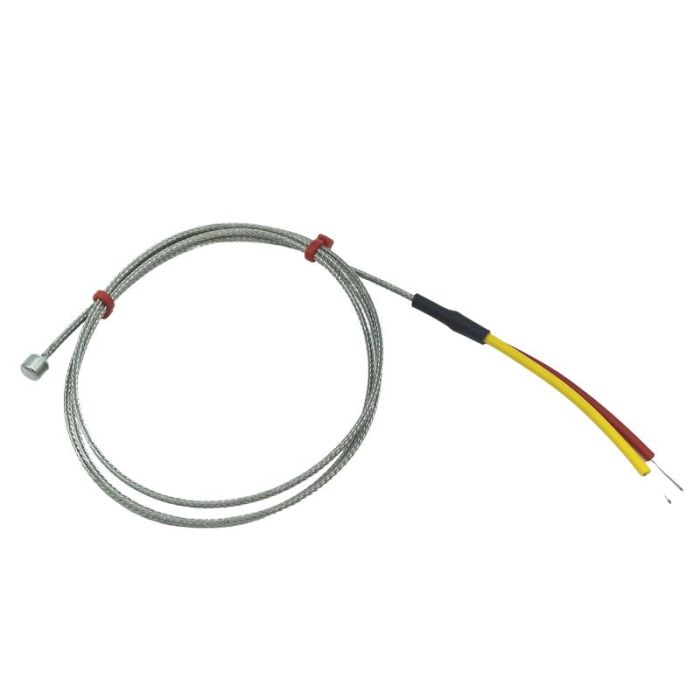

These thermocouple sensors are to be used to monitor the temperature of brake pads up to +400°C. They are designed to be embedded into the pads.

Each sensor has 1m of fibre glass insulated cable, with stainless steel Overbraid. Available in thermocouple type K  and with a choice of tip diameters. Each tip is sealed with a high temperature ceramic paste (Fortafix) which can withstand temperatures up to +400°C.

Specifications

General Description Designed for monitoring the temperature of brake pads
Sensor Type Grounded Junction
Thermocouple Type K
Probe Diameter 3.2mm, 4.0mm or 6.0mm
Probe Length Tip Length: 4mm
Cable Length 1m
Cable Type Fibre glass with stainless steel Overbraid 7/0.2mm
Termination Type Bare Tails
Max. Temperature +400°C
Standards Met ANSI MC96.1
Colour Positive: Red / Negative: Yellow
Important Information Potting sealant: Ceramic paste (Fortafix)
