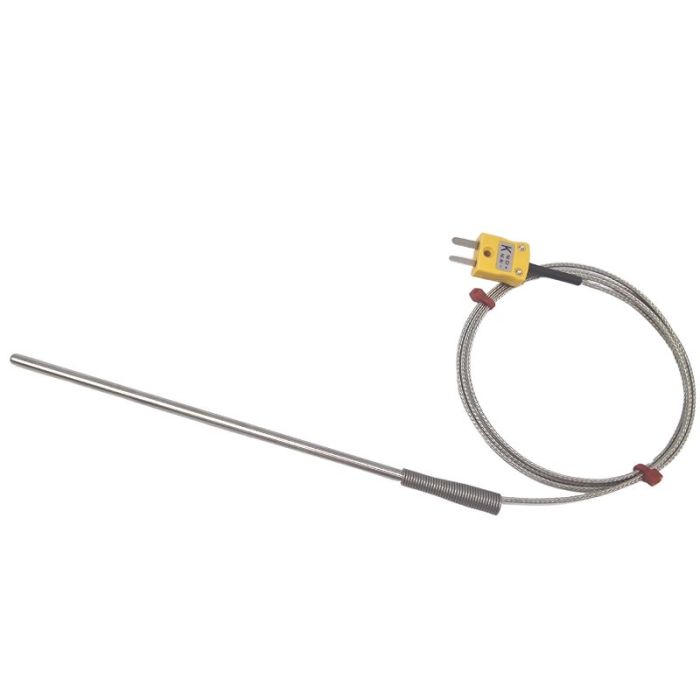

ANSI General Purpose Thermocouple Probe, Glassfibre insulated Cable with Stainless Steel Over-Braid Terminating in Bare tails, Miniature or Standard Plug - Type K

Change Currency

SKU
XE-0762
£9.97 £8.31
Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Specifications

General Description Rugged thermocouple with stainless steel sheath
Thermocouple Type K
Thermocouple Junction Grounded hot junction for fast response
Probe Diameter 4.5mm
Probe Length 150mm
Cable Length 1 or 2m
Cable Type Glassfibre insulated lead with stainless steel overbraid
Core / Strands 7/0.2mm
Termination Type Bare tails, Miniature or Standard Plug (with cable clamps)
Max. Temperature +350°C
Min. Temperature -60°C
Standards Met ANSI MC96.1
