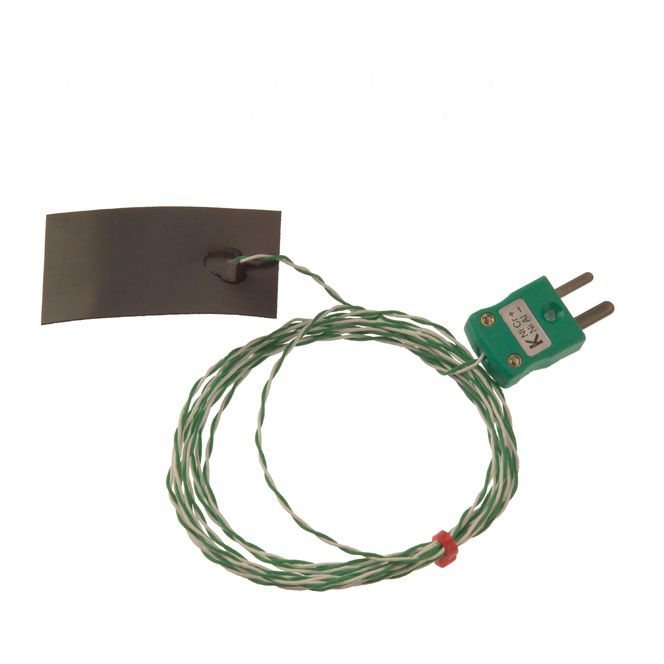

IEC Type K Magnetic Strip Thermocouple, PTFE Insulated with Miniature Plug

A flexible magnetic strip thermocouple capable of being attached to most ferro-magnetic surfaces, the large area of the magnet ensures good adhesion allowing simplicity of installation. Useful in a wide range of temperature monitoring applications, particularly in test and development.

General Description	Ideal for ferrous metal surface measurement
Thermocouple Junction	Grounded measuring junction
Magnet	50 x 25 x 1mm magnetic strip
Cable Length	1 or 2 metre
Cable Type	PTFE insulated wires, twin twisted
Termination Type	Miniature flat pin plug, colour coded in accordance IEC 584
Max. Temperature	100°C
Min. Temperature	-50°C
