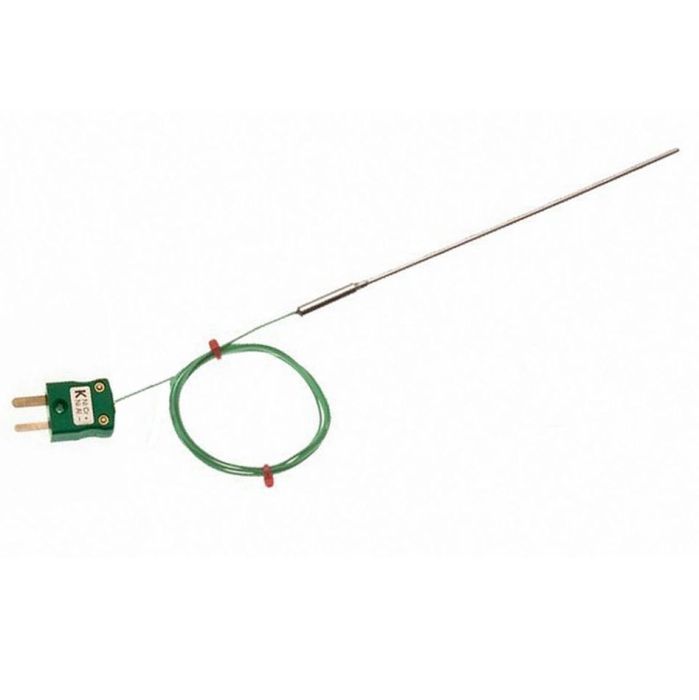

Mineral Insulated Thermocouple with Plain Pot Seal, 1m of PFA Insulated IEC Lead and mini plug termination - Types K,J,T,N

Change Currency

SKU
XE-0315
£32.81 £27.34

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select options
Tariff Code:
90259000
Manufacturer:
Labfacility
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with fitted mini plug.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



Specifications

General Description Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails.
Sensor Type Mineral Insulated
Thermocouple Type K,J,T,N
Element/hot junction Single element, junction insulated from sheath (offers protection against spurious electrical signals)
Probe Diameter 1.0, 1.5, 3.0, 4.5 & 6.0mm
Probe Length 150, 250, 500, 1000, 1500 & 2000mm
Sheath Material K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil
Pot Type Plain (+200°C)
Cable Length 1m
Cable Type PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584)
Core / Strands 7/0.2mm
Termination Type Fitted mini plug
Max. Temperature K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C.
Min. Temperature K -40°C, J -100°C, T -100°C, N -100°C
Tolerance Class 1
Standards Met In accordance with IEC 584

Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
