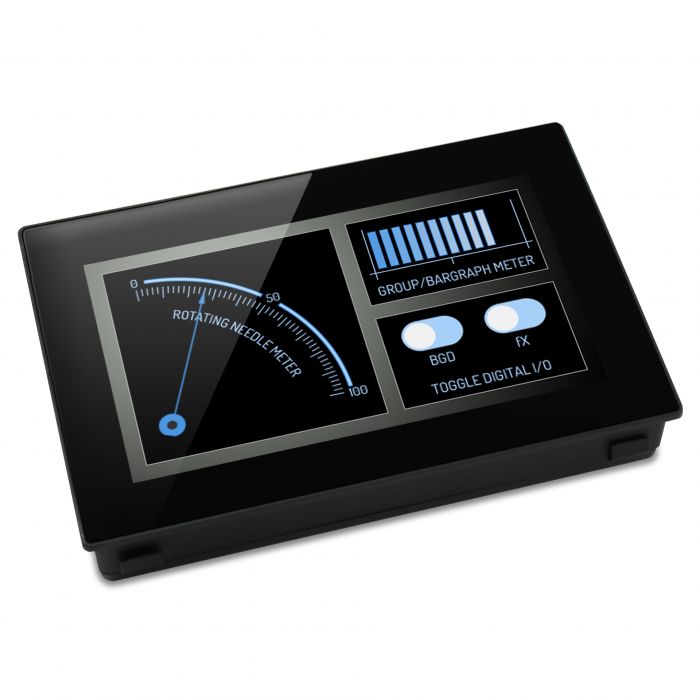

Lascar PanelPilot SGD 43-A - 4.3” Display with Analogue, Digital, PWM and Serial Interfaces

Change Currency

SKU

XE-4071-001

£233.99 £194.99

Skip to the beginning of the images gallery

SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs and serial RS232 and accessories available to measure RS485 and temperature.

General Description	SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio.
Type	Capacitive touch screen
Resolution	480 x 272px
Dimensions	119.3 (4.7) x 79.8 (3.1) x 20.0 (0.8) mm (in)
Input / Ranges	Analogue Inputs: Four 16-bit to ±40V d.c.
Power Supply	5 to 30V d.c. (300mA typical at 5V d.c.)
Processor	Freescale i.MX283 (454MHz, 32bit, ARM 9)
Resolution of data display	4.3” TFT with 262k colours

Product Video

PanelPilotACE - Smart Graphic Displays. Without Writing Code.

PanelPilotACE - An off the shelf hardware and design software package for rapid development of industrial display and panel applications.…. without writing a line of code.
