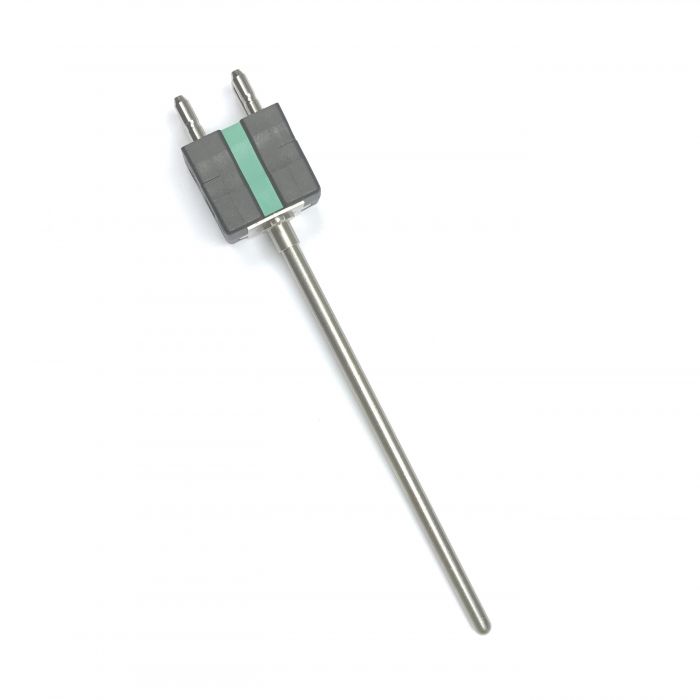

Mineral Insulated Dual Thermocouple with Standard Duplex Type K Plug

Change Currency

SKU
XE-2010
£59.60 £49.67

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



General Description 310 stainless steel sheath. Sheath can be bent/formed to suit many applications and processes.
Sensor Type Mineral insulated Type ‘K’ with Duplex Thermocouple Plug
Thermocouple Type K IEC
Thermocouple Junction Insulated hot junction
Termination Type Standard duplex plug termination (200°C)
Max. Temperature 1100°C
Min. Temperature -40°C
Standards Met Conforms to IEC 584 specification
Connector Type Plug
Connector Size Standard
Length 150, 250 or 500mm

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.


Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
