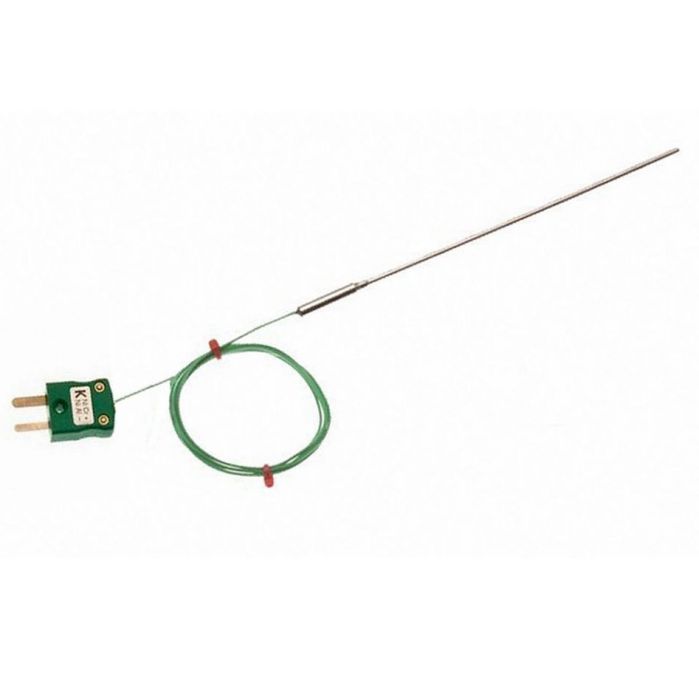

Mineral Insulated Thermocouple with Plain Pot Seal, 1m of PFA Insulated IEC Lead and mini plug termination - Types K,J,T,N
Change Currency
SKU
XE-0315
£30.66
£25.55
Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with fitted mini plug.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
| General Description | Plain pot seal (200°C) with 1 Metre of PFA insulated lead, 7/0.2mm flat pair with tails. |
|---|---|
| Sensor Type | Mineral Insulated |
| Thermocouple Type | K,J,T,N |
| Element/hot junction | Single element, junction insulated from sheath (offers protection against spurious electrical signals) |
| Probe Diameter | 1.0, 1.5, 3.0, 4.5 & 6.0mm |
| Probe Length | 150, 250, 500, 1000, 1500 & 2000mm |
| Sheath Material | K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil |
| Pot Type | Plain (+200°C) |
| Cable Length | 1m |
| Cable Type | PFA Teflon® insulated flat pair cable and tails (colour coded to IEC 584) |
| Core / Strands | 7/0.2mm |
| Termination Type | Fitted mini plug |
| Max. Temperature | K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. |
| Min. Temperature | K -40°C, J -100°C, T -100°C, N -100°C |
| Tolerance | Class 1 |
| Standards Met | In accordance with IEC 584 |
