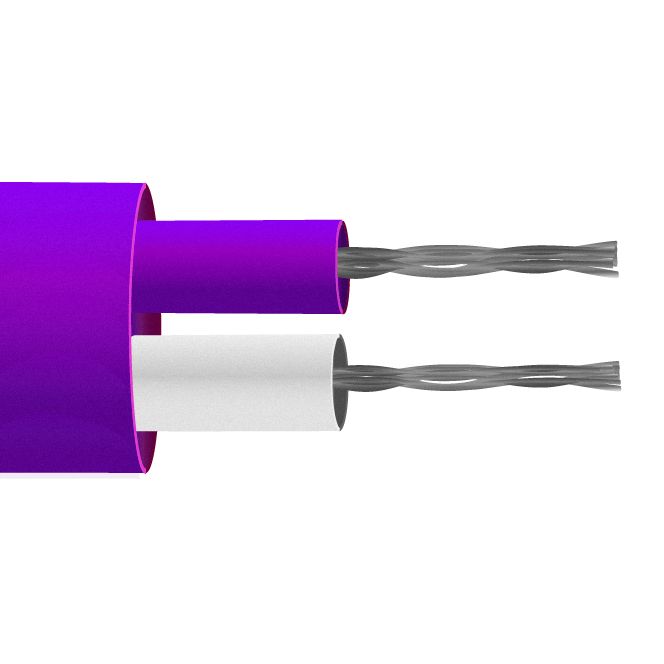

Thermocouple Cable / Wire (IEC) Type E PVC Insulated Flat Pair

Change Currency

SKU
XE-2554
£7.15 £5.96
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

Thermocouple Cable / Wire (IEC) Type E PVC Insulated Flat Pair

Compensating cable resembles the thermoelectric characteristic of the relevant thermocouple over a limited ambient temperature range, 0° to 80°C typically. Since these cables are made from low cost materials, cost savings can be achieved on plant installations compared with running true thermocouple extension cable.

Specifications

Cable Length 10, 25, 50, 100, 200m
Cable Type Flat pair construction
Core / Strands Stranded conductors available, 7/0.2mm
Insulation Material PVC Insulated
Max. Temperature +105°C
Min. Temperature -10°C
Standards Met Colour code (cores & jacket) to IEC-584-3
Thermocouple Type E
Tolerance Class 2

Cable Reeling Video

Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.



Product Download Icon

Cable / Wire Insulation Colour Codes

Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
