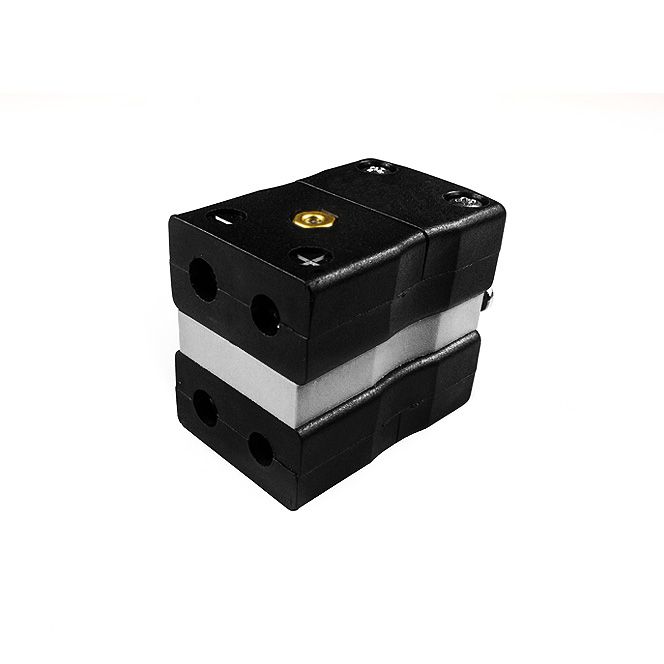

Standard Thermocouple Connector Duplex Socket AS-B-FD Type B ANSI
Change Currency
SKU
XE-9107-001
£16.85
£14.04
- Buy 2 - 9 for £11.90 £9.92 each
- Buy 10 - 99 for £10.12 £8.43 each
- Buy 100+ for £9.53 £7.94 each
Standard Thermocouple Connector Duplex Socket AS-B-FD Type B ANSI
Rugged glass filled polyester bodies. Contacts are polarised to prevent incorrect connection
Specifications
| General Description | Rugged glass filled polyester bodies, suitable for industrial applications. |
|---|---|
| Thermocouple Type | B ANSI |
| Connector Type | Duplex Socket |
| Connector Size | Standard |
| Colour | Grey |
| Dimensions | See Schematic Drawing (Product Literature Tab) |
| Max. Temperature | 220°C |
| +Positive Contact | Copper |
| -Negative Contact | Copper |
| Standards Met | BS EN 50212:1997. RoHS |
3D Animation
3D Animation Standard Thermocouple Connector Duplex Socket from Labfacility
Connectors Colour Chart
International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
