Type K Glassfibre Insulated Flat Pair thermocouple Cable / Wire (IEC)

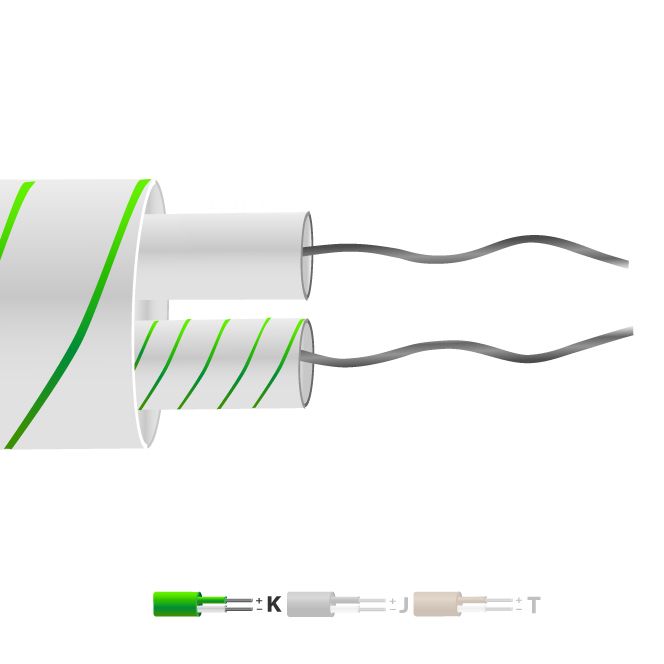

Glassfibre insulated flat pair construction, conductors laid flat, Glassfibre insulated with Glassfibre overall, silicone varnished throughout. Good temperature resistance but not suitable where fluids are present.
General Description | Good temperature range but will not prevent ingress of fluids. Fairly flexible but does not provide good mechanical protection. |
---|---|
Cable Length | 5m, 10m, 25m, 50m, 100m |
Cable Type | Flat pair cable |
Core / Strands | 1/0.3mm / 1/0.508mm / 7/02.mm / 1/0.2mm |
Conductor Cross Section 1/0.2 (mm2) | 0.032 |
Conductor Cross Section 1/0.315 (mm2) | 0.078 |
Conductor Cross Section 1/0.508 (mm2) | 0.203 |
Conductor Cross Section 7/0.2 (mm2) | 0.219 |
Outer Colour | Green & White |
+ Colour | Green |
- Colour | White |
Drain Wire | No |
Insulation Material | Glassfibre insulated |
Loop Resistance 1/0.2 (Ohms per combined metre) | 31.8 |
Loop Resistance 1/0.315 (Ohms per combined metre) | 12.8 |
Loop Resistance 1/0.508 (Ohms per combined metre) | 4.9 |
Loop Resistance 7/0.2 (Ohms per combined metre) | 4.5 |
Max. Temperature | +350°C (short periods up to 400°C) |
Min. Temperature | -60°C |
+ Conductor | Nickel Chromium |
- Conductor | Nickel Aluminium |
Screen | No |
Standards Met | Colour code (cores & jacket) to IEC-584-3 |
Thermocouple Type | K |
Tolerance | Class 2 |
Cable Reeling Video
Thermocouple Cables & Wire from Labfacility manufactured in the UK and distributed around the world. Available in 100m, 50m, 25m and 10m options. All Thermocouple Cables are held in stock ready to go.
Cable / Wire Insulation Colour Codes
Thermocouple extension and compensating wires and cable. IEC, ANS, DIN & BS.
