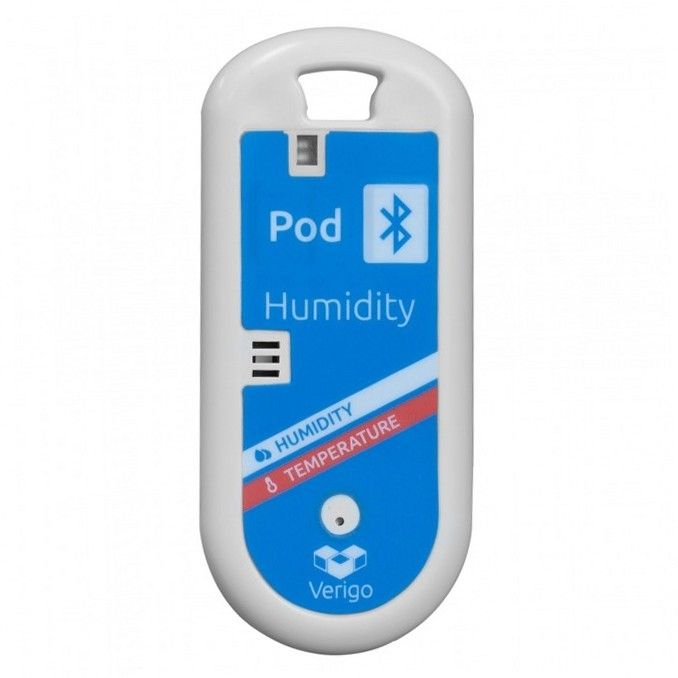

Verigo Model PA3 Reusable Temperature & Humidity Data Logger

Change Currency

SKU
XE-4300-001
£117.54 £97.95
Lead TIme:
In-Stock
Weight:
30g
Tariff Code:
90330000
Manufacturer:
Verigo
Country of Manufacture:
GB
RoHS Compliant:

The Bluetooth Pod environmental data logger records and wirelessly transmits temperature and relative humidity (RH) data and excursion alerts to your smartphones and tablets; no cables or readers required! Simply download the Verigo app for Android™ or iOS™ to your smart device and start using your Pod.

Ideal for use in the healthcare industry where guidelines state that any area that stores drugs must have temperature records.

Users can customise their Pod for each monitoring session by inputting a distinct name, scanning a product barcode, setting temperature and RH thresholds, and fully configuring for any particular application.

During use, the mobile app allows users to view all Pods up to 30 meters (100 feet) away in real time with their current temperature and RH readings and alerts.

Want to see more details about a particular Pod? Wirelessly connect to your Pod to view full data graphs and detailed alerts indicating threshold excursions. For further analysis, use the app’s share function to email data as a PDF or CSV straight from your mobile device. All data is stored in the cloud automatically via Verigo’s secure Web App, allowing users back at the office to search complete records of all Pod data, view location points, and generate PDF and CSV files for data review and analysis.

Verigo app Google Play     Verigo App on APP Store

General Description Up to 30 metre transmission range
Type Temperature & Humidity Data Logger
Communications Protocol Bluetooth
Accuracy +/- 0.5°C - +/- 6% RH
Resolution Temp: 0.01°C - RH: 0.03%
Logging Interval 1 min to 18 hours (user configurable)
Dimensions 97 x 43 x 13 mm
Max. Temperature 60°C
Min. Temperature -25°C
Weight 30g
Power Consumption 7 year shelf life - 2-4 year typical - 1-5 year continuous
Power Supply 3V Primary Lithium Manganese Dioxide (non re-chargeable)
Standards Met IP65



General Description Ideal for general purpose use. Contacts are polarised to ensure correct connection.
Cable Length 10, 25, 50, 100 or 200m
Cable Type Flat pair construction
Connector Type Plug
Connector Size Miniature
Core / Strands 7/0.2mm / 13/0.2mm
Colour Green
Element/hot junction Single element, junction insulated or grounded from sheath
Insulation Material PVC Insulated
Max. Temperature 220°C
Min. Temperature -10°C
Probe Diameter 0.75mm
Probe Length 100,150, 250mm
Sensor Type Mineral Insulated
Sheath Material K - Stainless steel 316
Standards Met BS EN 50212:1997. RoHS
Thermocouple Type K IEC
Termination Type Fortfix sealed with = +VE leg 15mm long and -VE leg 10mm long
