PTFE Single Shot Thermocouple with Miniature Plug

PTFE Single Shot Thermocouple with Miniature Plug

Details

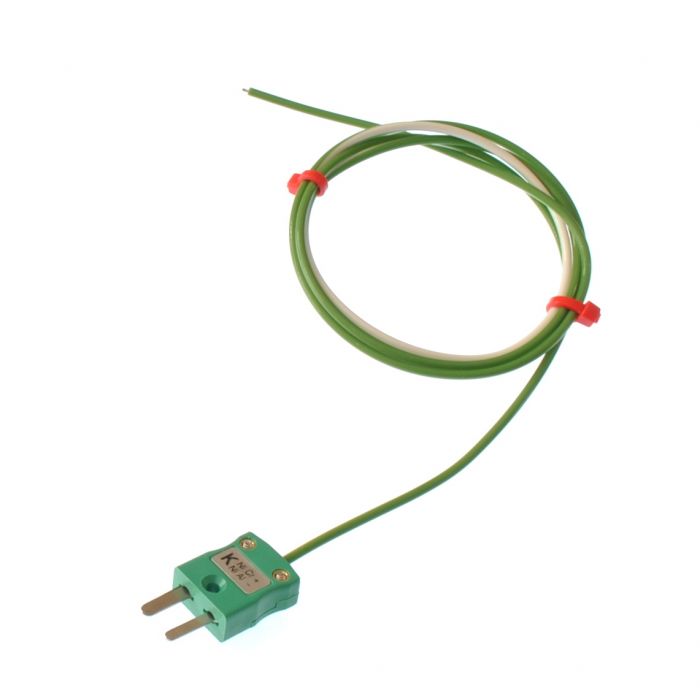

Exposed Junction Thermocouple Type K, 1/0.376mm Single Shot PTFE with Miniature Plug

A very fast response PTFE insulated thermocouple, made from a unique single shot cable construction which provides a gas, steam and water tight insulation along the cable. This sensor is ideally suited to temperature monitoring of test pieces in autoclave and aerospace applications.

*** See specifications tab for full details ***

Sensor Type Exposed Junction
General Description Unique single shot cable construction Resistant to chemicals, oils and fluids. Suitable for aerospace applications and is wildly used in autoclaves.
Thermocouple Type K & T
Cable Length 1, 2, 5 & 10m
Cable Type PTFE
Core / Strands 1/0.376mm
Termination Type Terminated with a miniature flat pin plug (Plug max temp 220°C)
Max. Temperature +250°C
Min. Temperature -75°C
Standards Met IEC-584-3
Connector Type Plug
Connector Size Miniature
GBP EUR USD JPY
Excl. VAT: £9.73 Incl. VAT: £11.68

* Required Fields

Labfacility Part No:
XE-5578
Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
