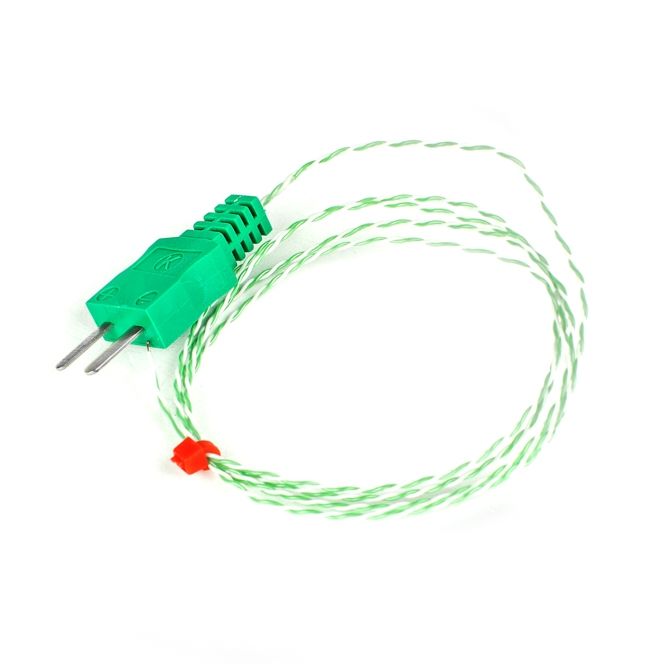

PFA Insulated IEC Exposed Junction thermocouple with Moulded-on Plug - Type K,T
Moulded plug gives a robust construction as well as providing a waterproof termination.
Need Your Temperature Sensor calibrated?
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.
Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.
|General Description||Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam etc.|
|Sensor Type||Exposed Junction|
|Thermocouple Type||K or T|
|Cable Length||1, 2, 3m|
|Cable Type||PFA insulated conductors twisted together|
|Core / Strands||1/0.2 mm, 1/0.3mm, 1/0.5mm|
|Termination Type||Miniature moulded flat pin plug, colour coded ‘green’ in accordance IEC specification|
|Standards Met||Colour code (cores & jacket) to IEC-584-3|
|Connector Size||Miniature (moulded-on)|
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Thermocouple Product Guide - Labfacility
An overview of the different thermocouples available from Labfacility.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
