General Purpose Type K Thermocouple Kit

Change Currency

SKU
XE-KITGEN
£235.69 £196.41
Lead Time:
See Description
Weight:
3.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
Product Compliance:
Postage & Delivery:

Lead time can vary due to availability of the individual parts - usual lead time is 2 - 7 working days.

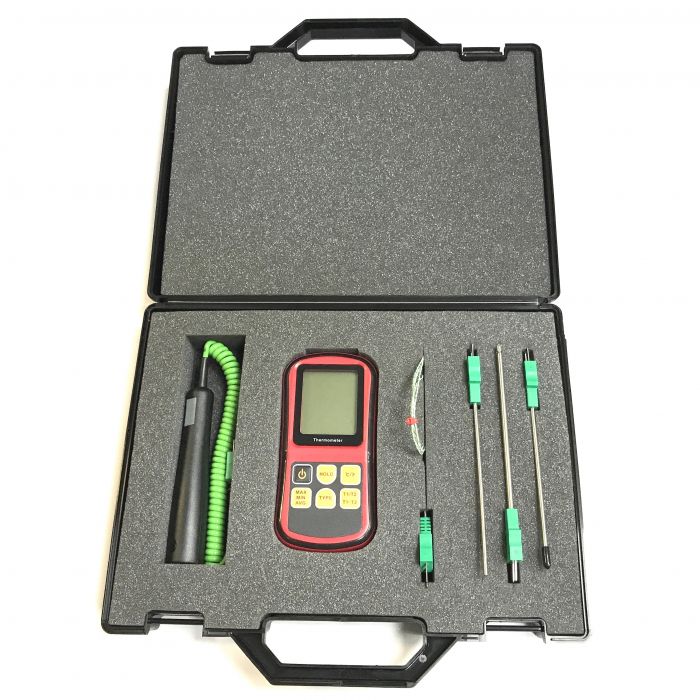

Kit consists of:

  • 1 x GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)
  • 1 x Interchangeable thermometer probe handle Type K IEC
  • 1 x Carry case

Comes with 3 moulded-on type K IEC mineral insulated thermocouples and 1 type K IEC exposed junction. Moulded-on plug gives a robust construction as well as providing a waterproof termination.

  • 3mm x 110mm General Purpose Thermocouple with Moulded-on Miniature Plug
  • 4mm x 120mm Air Probe Thermocouple with Moulded-on Miniature type Plug
  • 3.3mm x 115mm Needle Tip Thermocouple with Moulded-on Miniature Plug
  • Exposed Junction thermocouple with Moulded-on Miniature Plug



GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)

Resolution: 0.1° C or 0.1° F. Accuracy: ± 0.4° C ± 1%
-200°C to 1372°C (Type K) Relative Humidity: 0-70% RH



Interchangeable thermometer probe handle Type K IEC

Incorporates a miniature thermocouple socket

Allows easy connection of probes





General Purpose Thermocouple with Moulded-on Miniature Plug

3.0mm x 110mm Probe temperature range -40°C to +1100°C.





Air Probe Thermocouple with Moulded-on Miniature type Plug

4.0mm x 120mm Maximum Temperature 250°C





Needle Tip Thermocouple with Moulded-on Miniature Plug

3.3mm x 115mm Probe temperature range:  -50°C to +260°C





Exposed Junction thermocouple with Moulded-on Miniature Plug

1/0.3mm Conductors 1M length. Insulation rating -75°C to 260°C




Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
