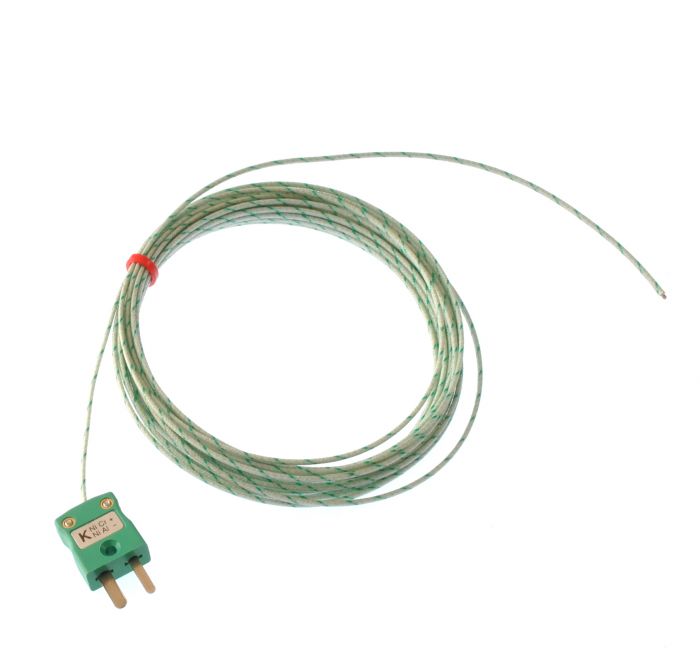

Glassfibre insulated Flat Pair IEC Exposed Junction Thermocouple - Types K,J,T

Change Currency

SKU
XE-3551
£8.28 £6.90

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
RoHS Compliant:
Product Compliance:

Thermocouple type K,J or T. Fast response, welded exposed junction available with a Miniature plug termination or bare tails. Ideal for test & development applications.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order, you will be contacted regarding delivery information



General Description Good temperature resistance (not suitable in fluids)
Sensor Type Exposed Junction
Thermocouple Type K, J & T
Cable Length 1, 2, 5 & 10m
Cable Type Glassfibre
Core / Strands 1/0.315mm, 1/0.508mm
Termination Type Miniature flat pin plug colour coded in accordance IEC 584 or bare tails
Max. Temperature +350°C (short periods up to 400°C)
Min. Temperature -60°C
Tolerance Class 2
Standards Met IEC-584-3
Connector Type Plug
Connector Size Miniature
