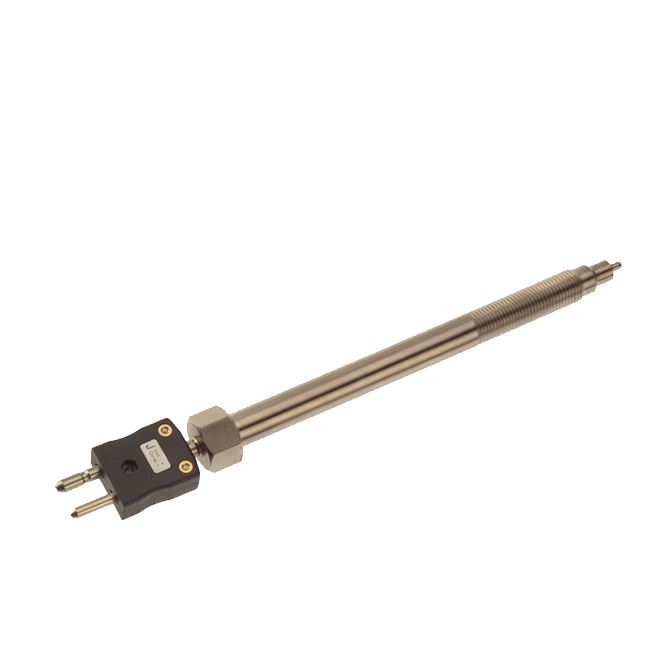

IEC Melt Bolt Thermocouple - Type K, J

Change Currency

£57.12 £47.60
Lead Time:
Select Options
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:
General Description Designed to withstand high pressure applications experienced with molten plastics & polymers
Sensor Type Typically used in plastics extruders and injection moulders
Thermocouple Type K or J
Thermocouple Junction Insulated hot junction
Probe Diameter 3mm
Probe Length 5mm (76mm or 152mm bolt lengths)
Sheath Material Stainless steel
Termination Type Standard plug termination (round pin)
Max. Temperature +500°C
Tolerance Tolerance & colour code in accordance with IEC-584 specification
Thread 1/2”UNF-20 thread
