Lascar EL-SGD 70-ATP - Panel Mountable Four-Channel Temperature Data Logger

Change Currency

SKU
XE-4073-001
£524.22 £436.85
Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90259000
Manufacturer:
Lascar
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

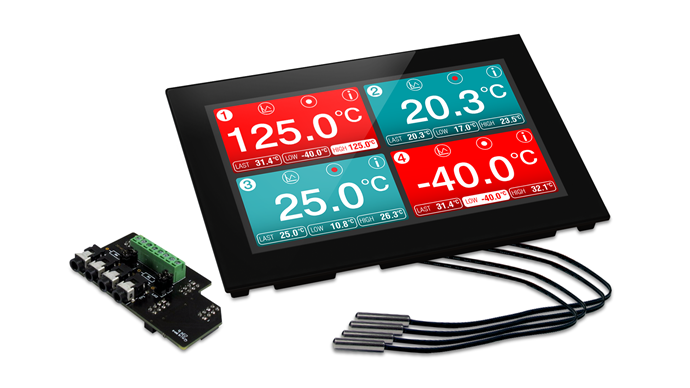

The EL-SGD 70-ATP is a panel-mountable, four-channel temperature data logger based on the PanelPilotACE platform. The product includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours.


Each EL-SGD 70-ATP includes:

  • 7” PanelPilotACE display with mounting kit SGD 70-A
  • Four-channel thermistor add-on board S70-TP
  • 4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP
  • Mini USB cable CABLE USB A-MF



General Description Includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes.
Type Panel Mountable Four-Channel Temperature Data Logger
Communications Protocol USB
Accuracy ±1.0°C (±1.8°F)
Readings (per channel) 100,000
Resolution 0.01°C (0.01°F)
No of Channels Up to 4
Dimensions 186 mm (7.3”) x 122 mm (4.3”) x 21 mm (0.8”)
Input / Ranges Supplied probe measurement range: -40°C to +125°C (-40°F to +257°F)
Maintenance Logging Rate: 5 seconds to 12 hours
Accessories Each EL-SGD 70-ATP includes: 7” PanelPilotACE display with mounting kit SGD 70-A Four-channel thermistor add-on board S70-TP 4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP Mini USB cable CABLE USB A-MF

How to set up your EL-SGD 43 and 70-ATP

This videoi will show you how to set up your EL-SGD 43-ATP. The same procedure applies to the EL-SGD 70-ATP.
