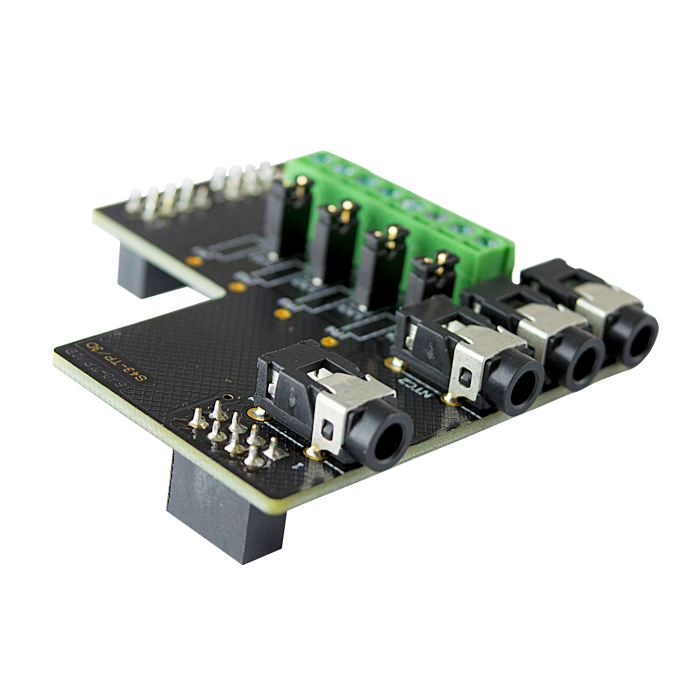

Lascar PanelPilot S43-TP - Four-channel thermistor add-on board

Change Currency

SKU
XE-4072-001
£42.00 £35.00
Lead Time:
5 - 7 Working Days
Weight:
1.00KG
Tariff Code:
90330000
Manufacturer:
Lascar
Country of Origin:
GB
RoHS Compliant:

The S43-TP is an accessory to the PanelPilotACE range of compatible displays and panel meters and is compatible with the 4.3” PanelPilotACE display module SGD 43-A. The S43-TP mounts on the rear of the SGD 43-A and provides up to four thermistor inputs which can then be utilised within the free PanelPilotACE Design Studio software to measure, display, log and graph temperature readings.

Each S43-TP is supplied with a 1m thermistor probe fitted with a 3.5mm socket and featuring a potted metal sheath



General Description Each S43-TP is supplied with a 1m thermistor probe fitted with a 3.5mm socket and featuring a potted metal sheath
Type Four-channel thermistor add-on board
Accuracy Temperature accuracy: ±1.0°C (±2.0°F)
Resolution Internal resolution 0.01°C (0.01°F)
No of Channels Up to 4
Input / Ranges Supplied probe measurement range: -40°C to +80°C (-40°F to +176°F)
