Lascar PanelPilot SGD 70-A - 7” Display with Analogue, Digital, PWM, and Serial Interfaces
Change Currency

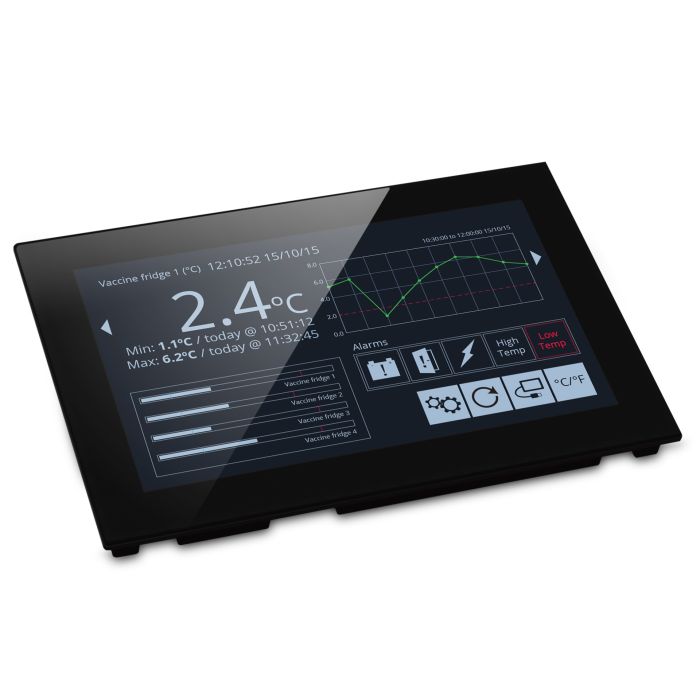

SGD 70-A is a 7” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, serial RS232 and RS485 and an additional add on board to measure temperature.
| General Description | SGD 70-A is a 7” capacitive touch display designed for use with PanelPilotACE Design Studio. |
|---|---|
| Type | Capacitive touch screen |
| Resolution | 1024 x 600 pixel |
| Dimensions | 186 mm (7.3”) x 122 mm (4.3”) x 21 mm (0.8”) |
| Input / Ranges | Analogue Inputs: Four 16-bit to ±40V d.c. |
| Power Supply | 5 to 30V d.c. (300mA typical at 5V d.c.) |
| Processor | Freescale i.MX 6SoloX (ARM Cortex A9 & M4) |
| Resolution of data display | 7” TFT with 16.7M colours |
PanelPilotACE - Smart Graphic Displays. Without Writing Code.
PanelPilotACE - An off the shelf hardware and design software package for rapid development of industrial display and panel applications.…. without writing a line of code.
