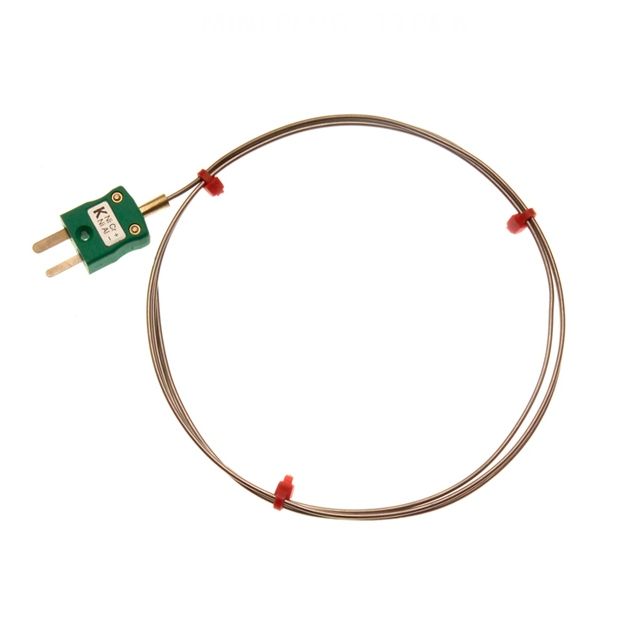

Mineral Insulated Thermocouple with Miniature Plug IEC - Types K,J,T,N
Mineral insulated thermocouple in type K, J, T or N. Various lengths available all terminated with an IEC miniature plug (220°C) for quick, simple connection.
Need Your Temperature Sensor calibrated?
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.
Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.
|General Description||Highly flexible, sheath can be bent/formed to suit many applications and processes|
|Sensor Type||Mineral Insulated|
|Thermocouple Type||K, J, T & N|
|Element/hot junction||Single element, junction insulated from sheath (offers protection against spurious electrical signals)|
|Probe Diameter||1.0, 1.5, 2.0 & 3.0mm|
|Probe Length||150, 250, 500 & 1000mm|
|Sheath Material||K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil|
|Termination Type||Miniature flat pin plug, colour coded in accordance IEC 584|
|Max. Temperature||K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C|
|Min. Temperature||K -40°C, J -100°C, T -100°C, N -100°C|
|Standards Met||IEC 584|
|Colour||K - Green, J - Black, T - Brown, N - Pink|
