Mineral Insulated Thermocouple with Standard Plug IEC - Types K,J,T,N

Change Currency

SKU
XE-3700
£18.84 £15.70

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Country of Origin:
GB
RoHS Compliant:

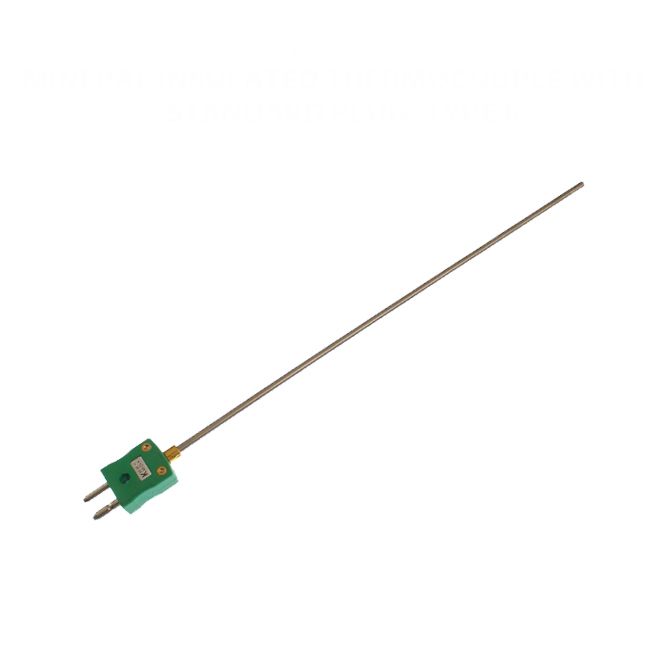

Mineral insulated thermocouple in type K, J, T or N. Various lengths available all terminated with an IEC standard plug (220°C) for quick, simple connection.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.

General DescriptionHighly flexible, sheath can be bent/formed to suit many applications and processes
Sensor TypeMineral Insulated
Thermocouple TypeK, J, T & N
Element/hot junctionSingle element, junction insulated from sheath (offers protection against spurious electrical signals)
Probe Diameter1.5, 3.0, 4.5mm & 6.0mm
Probe Length150, 250, 500, 1000 & 2000mm
Sheath MaterialK - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil
Termination TypeStandard round pin plug, colour coded in accordance IEC 584-3
Max. TemperatureK +1100°C, J +760°C, T +400°C, N +1300°C. Plug Max. temperature range: 200°C
Min. TemperatureK -40°C, J -100°C, T -100°C, N -100°C
Standards MetIn accordance with IEC 584-1&2
Connector TypePlug
Connector SizeStandard
ColourK - Green, J - Black, T - Brown, N - Pink
