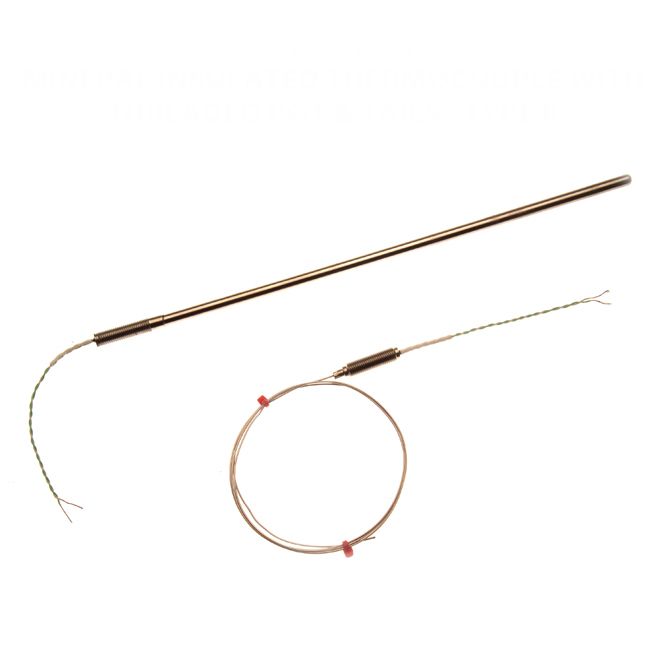

Mineral Insulated Thermocouple with Threaded Pot and100mm of PFA insulated Twin Twisted IEC lead - Types K,J,T,N

Change Currency

SKU
XE-3305
£16.24 £13.53

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90259000
RoHS Compliant:
Product Compliance:

Mineral insulated thermocouple in various lengths terminatied with 100mm,PFA insulated twin twisted IEC,7/0.2mm.

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



General Description Mineral insulated thermocouple in various lengths terminatied with 100mm,PFA insulated twin twisted IEC,7/0.2mm.
Sensor Type Mineral Insulated
Thermocouple Type K,J,T,N
Element/hot junction Single element, junction insulated from sheath (offers protection against spurious electrical signals)
Probe Diameter 1.0, 1.5, 3.0, 4.5 & 6.0mm
Probe Length 150, 250, 500, 1000, 1500 & 2000mm
Sheath Material K - Stainless steel 310, J - Stainless steel 321, T - Stainless steel 316, N - Nicrosil
Pot Type M8 x 1.0mm fine pitch threaded pot seal (200°C)
Cable Length 100mm
Cable Type PFA insulated twin twisted IEC
Core / Strands 7/0.2mm
Termination Type Bare tails
Max. Temperature K +1100°C for 1.5 & 3.0mm diameters +750°C for 1.0mm diameter, J +760°C, T +400°C, N +1300°C.
Min. Temperature K -40°C, J -100°C, T -100°C, N -100°C
Standards Met In accordance with IEC 584
