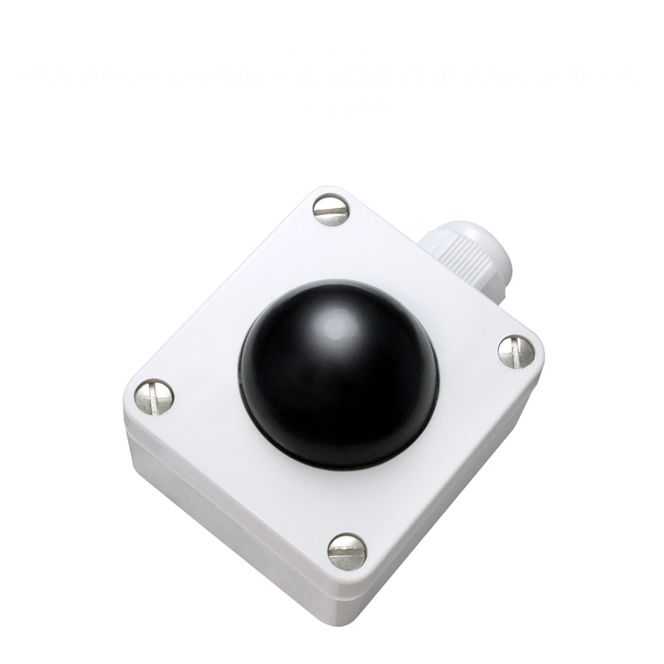

Outdoor Radiation Temperature Sensor

Outdoor Radiation Temperature Sensor

Details

A radiation sensor measures the thermal radiation in the range of -30 up to +75°C and is with all current sensors available. The temperature probe can be mounted in climate-sensitive areas e.g. on outside walls, whereby the humidity-proof plastic housing protects the sensor optimally from outside influences.

  • Measurement range temp: -30 to +75°C
  • Sensor: Pt100
  • Circuit type: 2-wire connection
  • Measurement current: approx. 1 mA
  • Electrical connection: screw terminals max. 1,5 mm²
  • Leakage resistance: > 100 MOhm, at +20°C (500 V DC)
  • Housing: polyamide with snap closing screws, colour white like RAL 9010
  • Cable gland: PG11 high-strength cable gland with strain relief
  • Material: Globe: aluminium (black)
  • Dimensions: Globe: Ø 40 mm
  • Protection type: IP65
  • Storage temperature: -20...+70°C
  • Installation: screw fastening
  • Standards: CE-conformity, GOST, RoHS
GBP EUR USD JPY
Excl. VAT: £59.33 Incl. VAT: £71.20
Labfacility Part No:
XE-6334-001
Lead Time:
In-Stock
Tariff Code:
90330000
Manufacturer:
Labfacility
Country of Origin:
United Kingdom
RoHS Compliant:
