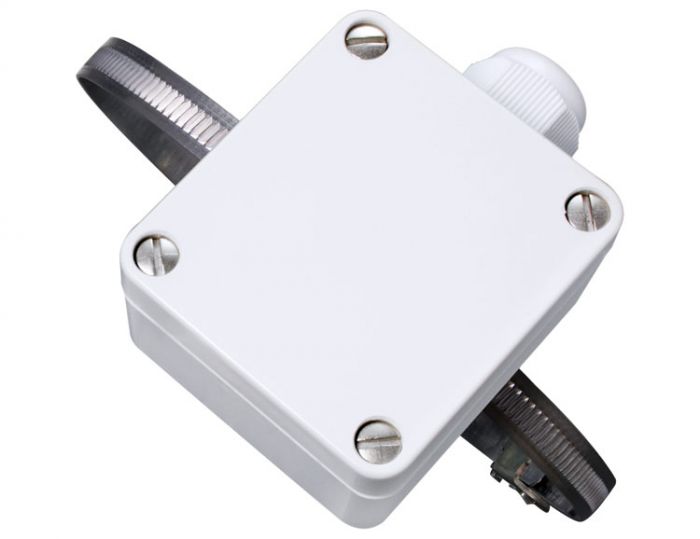

Contacting Temperature Sensor with Clamping Band
Change Currency
If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.
Contacting sensor measures the surface temperature from pipes in the range of -30 up to +110°C. By means of the clamping strap supplied on the housing block, the temperature sensor is directly and securely attached to the cold or hot water line of heaters. The robust housing allows the use of equipment in harsh environments.
Specifications
| Measurement temperature range | -30 to +110°C |
| Sensor | Pt100 |
| Type | 2-wire connection |
| Measurement current | approx. 1 mA |
| Electrical connection: | screw terminals max. 1,5 mm² |
| Leakage resistance | > 100 MOhm, at +20°C (500 V DC) |
| Housing | polyamide with snap closing screws, colour white like RAL 9010 |
| Cable gland | PG11 high-strength cable gland with strain relief |
| Material | Contacting block: aluminium |
| Dimensions | (Housing) L 64 x W 58 x H 34,5 |
| Protection type | IP65 |
| Working temperature | -30 to +110°C |
| Storage temperature | -20 to +70°C |
| Standards | CE-conformity, GOST, RoHS |
