Room Radiation Temperature Sensor

Change Currency

SKU
XE-6333-001
£90.40 £75.33
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

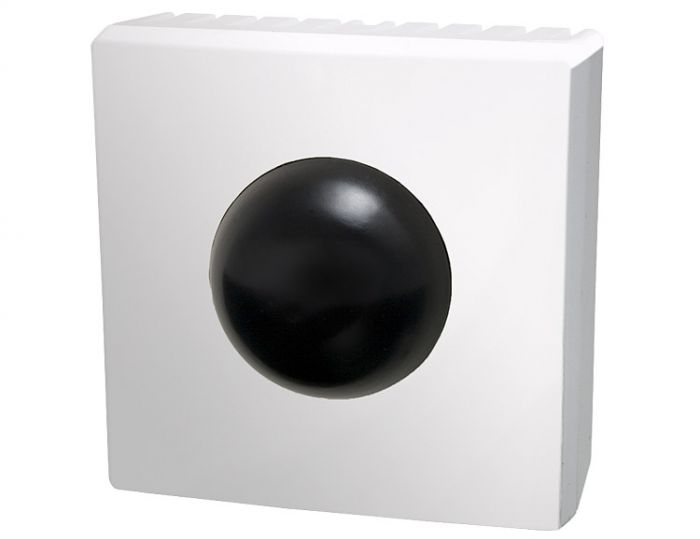

A radiation sensor in modern housing design measures the thermal radiation in the range of -30 up to +75°C in gasiform medium. The temperature probe can be mounted directly on-wall or onto a junction box by 2 fixing screws.

Specifications

Measurement temperature range -30 to +75°C
Sensor Pt100
Circuit type 2-wire connection
Measurement current approx. 1 mA
Electrical connection screw terminals max. 1,5 mm²
Leakage resistance > 100 MOhm, at +20°C (500 V DC)
Housing ABS polymer, colour signal white like RAL 9003
Cable gland at the backside of the housing
Material (Globe) aluminium (black)
Dimensions (Housing) L 82 x B 82 x H 25 mm, (Globe) Ø 40 mm
Protection type IP30
Storage temperature -20 to +70°C
Installation on-wall or on flush-mounted box
Standards CE-conformity, GOST, RoHS
