Radiation Pendulum Temperature Sensor

Change Currency

SKU
XE-6332-001
£96.61 £80.51
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.

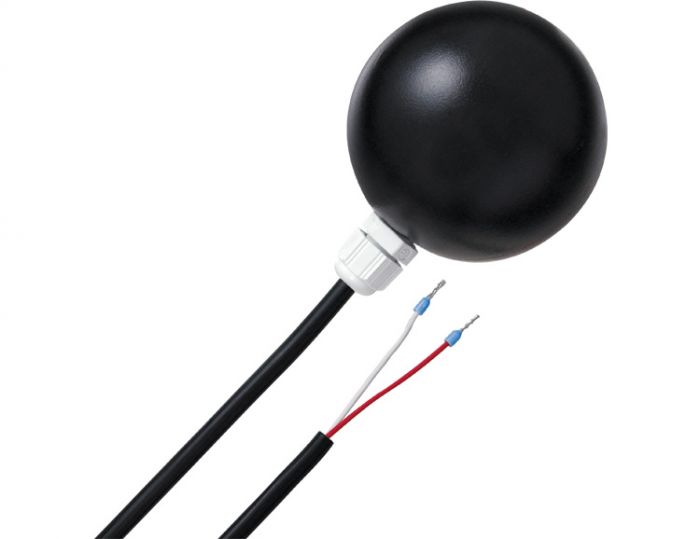

A room pendulum sensor measures the thermal radiation in the range of -30 up to +75°C e.g. in high rooms and is with all current sensors available. The temperature sensor is simply suspended as a pendulum in the room so an accurate measurement result of the perceived room temperature is ensured.

Specifications

Measurement temperature range -30 to +75°C
Sensor Pt100
Circuit type 2-wire connection
Measurement current approx. 1 mA
Electrical connection stripped ends with ferrules
Cable 2 m PVC cable (2x0,25 mm², max. +105°C) with core cable ends
Leakage resistance > 100 MOhm, at +20°C (500 V DC)
Material (Globe) aluminium (black)
Dimensions (Globe) Ø 70 mm
Protection type IP65
Storage temperature -20 to +70°C
Installation screw fastening
Standards CE-conformity, GOST, RoHS
