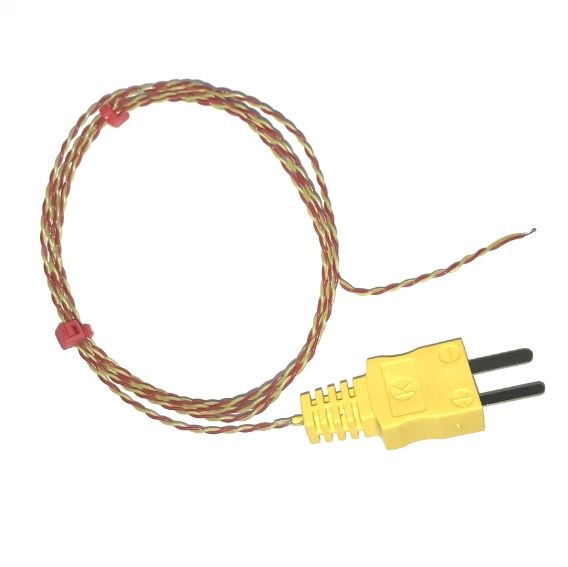

PFA Insulated ANSI Exposed Junction thermocouple with Moulded-on Plug - Type K

Change Currency

SKU
XE-0025
£8.32 £6.93

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
RoHS Compliant:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order, this will add 2-3 days lead time to your order.

General DescriptionGood mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam etc.
Thermocouple TypeK
Thermocouple JunctionExposed
Cable Length1, 2 or 3m
Cable TypePFA Teflon® twin twisted pair
Core / Strands1/0.3mm
Termination Typemoulded-on type K ANSI miniature thermocouple plug
Max. Temperature260°C
Min. Temperature-75°C
ToleranceTolerance Class 1 for optimum accuracy
Standards MetANSI MC96.1 Colour Coded

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.


Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
