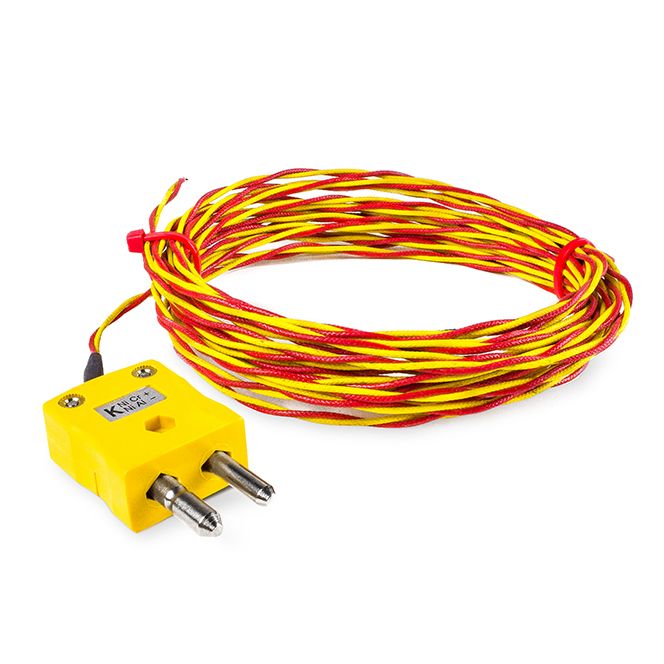

ANSI High Temperature Glassfibre Twin Twisted Exposed Welded Tip Thermocouples with Standard Plug Termination

Change Currency

SKU
XE-5630
£18.98 £15.82

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
90330000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



General Description Fast response, welded exposed junction. Good temperature resistance (not suitable in fluids).
Thermocouple Type K
Thermocouple Junction Exposed
Cable Length 5, 10 or 20-metre-long
Cable Type high temperature glassfibre insulated twisted cable
Core / Strands 1/0.711mm conductors (21awg)
Cable Termination Standard plug termination
Max. Temperature +700°C
Min. Temperature 0°C
Tolerance Tolerance to ANSI MC96.1 Class 2
Standards Met Colour code to ANSI MC96.1

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.


Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
