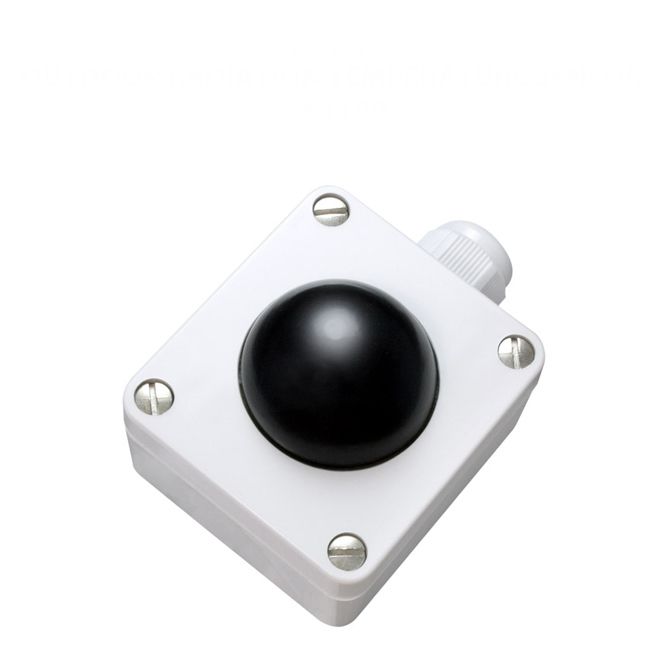

Outdoor Radiation Temperature Sensor
Change Currency
If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.
A radiation sensor measures the thermal radiation in the range of -30 up to +75°C and is with all current sensors available. The temperature probe can be mounted in climate-sensitive areas e.g. on outside walls, whereby the humidity-proof plastic housing protects the sensor optimally from outside influences.
Specifications
Measurement temperature range | -30 to +75°C |
Sensor | Pt100 |
Circuit type | 2-wire connection |
Measurement current | approx. 1 mA |
Electrical connection | screw terminals max. 1,5 mm² |
Leakage resistance | > 100 MOhm, at +20°C (500 V DC) |
Housing | polyamide with snap closing screws, colour white like RAL 9010 |
Cable gland | PG11 high-strength cable gland with strain relief |
Material | (Globe) aluminium (black) |
Dimensions | (Globe) Ø 40 mm |
Protection type | IP65 |
Storage temperature | -20 to +70°C |
Installation | screw fastening |
Standards | CE-conformity, GOST, RoHS |
