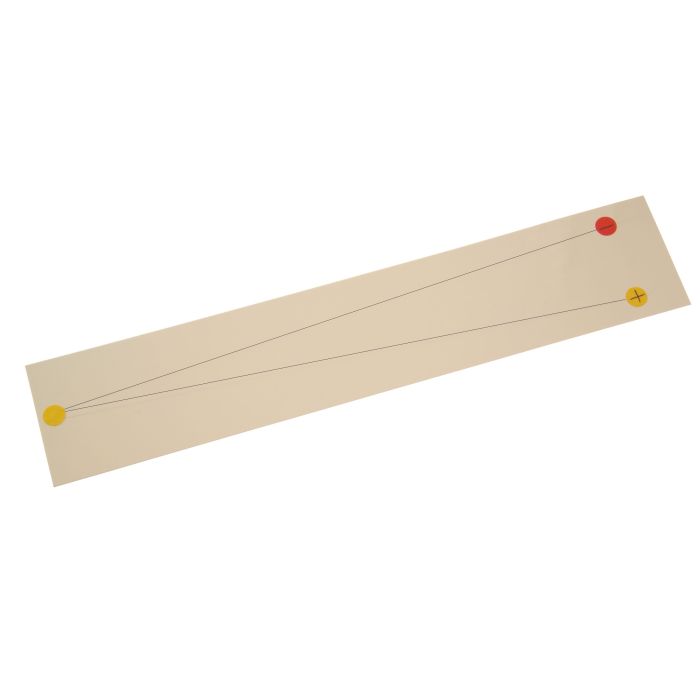

Fine Gauge Bare Wire Exposed Junction Thermocouple (0.025mm conductors) - Type K

Change Currency

£23.96 £19.97
  • Buy 5+ for £23.17 £19.31 each
Lead Time:
7 - 10 working days
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

Ultra-fine Type K welded tip Thermocouple for Optimum Sensitivity.



General Description Very fast response to a fraction of a second, Ideal for minimal invasive temperature sensing.
Sensor Type Exposed Junction
Thermocouple Type K
Cable Length 200mm
Cable Type Fine gauge bare wire
Core / Strands 0.001" (0.025mm)
Max. Temperature 315°C
