Thermocouple Brake Pad Temperature Sensors

Change Currency

£19.51 £16.26
Lead Time:
Select options
Tariff Code:
Country of Manufacture:
RoHS Compliant:
Product Compliance:

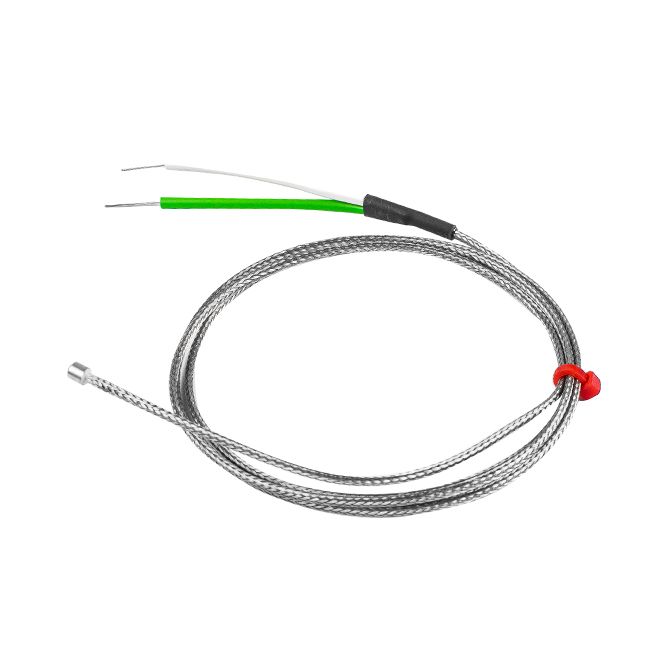

These thermocouple sensors are to be used to monitor the temperature of brake pads up to +400°C. They are designed to be embedded into the pads.

Each sensor has 1m of fibre glass insulated cable, with stainless steel Overbraid. Available in thermocouple type K or J and with a choice of tip diameters. Each tip is sealed with a high temperature ceramic paste (Fortafix) which can withstand temperatures up to +400°C.

General Description Designed for monitoring the temperature of brake pads
Sensor Type Grounded Junction
Thermocouple Type K or J
Probe Diameter 3.2mm, 4.0mm or 6.0mm
Probe Length Tip Length: 4mm
Cable Length 1m
Cable Type Fibre glass with stainless steel Overbraid 7/0.2mm
Termination Type Bare tails
Max. Temperature +400°C
Features #1 Potting sealant: Ceramic paste (Fortafix)
