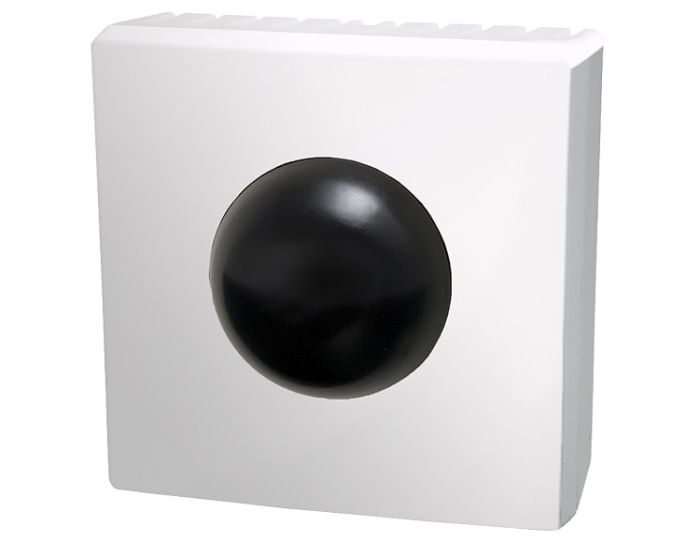

A radiation sensor in modern housing design measures the thermal radiation in the range of -30 up to +75°C in gasiform medium. The temperature probe can be mounted directly on-wall or onto a junction box by 2 fixing screws.

• Measurement range temp: -30 to +75°C
• Sensor: Pt100
• Circuit type: 2-wire connection
• Measurement current: approx. 1 mA
• Electrical connection: screw terminals max. 1,5 mm²
• Leakage resistance: > 100 MOhm, at +20°C (500 V DC)
• Housing: ABS polymer, colour signal white like RAL 9003
• Cable gland: at the backside of the housing
• Material: Globe: aluminium (black)
• Dimensions: Housing: L 82 x B 82 x H 25 mm, Globe: Ø 40 mm
• Protection type: IP30
• Storage temperature: -20...+70°C
• Installation: on-wall or on flush-mounted box
• Standards: CE-conformity, GOST, RoHS
