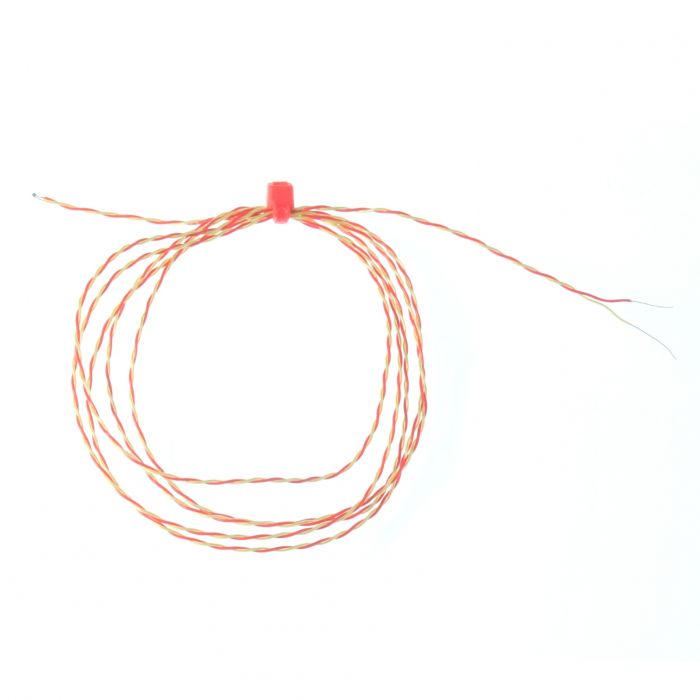

PFA Insulated Bare Tails ANSI - Type K,T

Change Currency

£8.47 £7.06

Maximum 30 characters

Maximum 40 characters

Lead Time:
Select Options
Tariff Code:
RoHS Compliant:
Product Compliance:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.


General Description Fast response, welded exposed junction
Thermocouple Type K or T
Thermocouple Junction Exposed
Cable Length 1, 2, 5 or 10 metre
Cable Type Teflon® PFA insulated twin-twisted lead
Core / Strands 1/0.2, 1/0.3mm solid or 7/0.2mm stranded
Cable Termination Bare wire
Max. Temperature +250°C
Min. Temperature -75°C
Standards Met ANSI MC96.1

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.

Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.

Product Download Icon

Thermocouple Product Guide - Labfacility

An overview of the different thermocouples available from Labfacility.
