Ceiling Temperature Sensor

Ceiling Temperature Sensor

Details

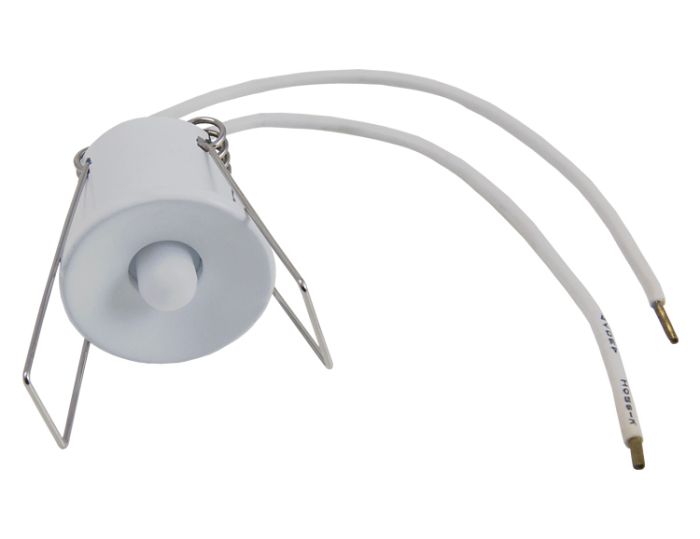

A ceiling sensor in modern, invisible housing design measures the temperature in the range of -30 up to +60°C in gasiform medium. The temperature sensor can be directly mounted by using 2 springs in a suspended ceiling or plasterboard wall.

  • Measurement range temp: -30 to +60°C
  • Sensor: Pt100
  • Circuit type: 2-wire connection
  • Measurement current: approx. 1 mA
  • Electrical connection: stripped ends with ferrules
  • Cable: 135 mm silicone cable (2x0,75 mm², max. +180°C)
  • Leakage resistance: > 100 MOhm, at +20°C (500 V DC)
  • Housing: aluminium, colour signal white like RAL 9003
  • Dimensions: Housing: Ø 23 mm, Cover: Ø 30 mm
  • Protection type: IP30
  • Protection class: III
  • Storage temperature: -20...+50°C
  • Installation: in the false ceiling by 2 tension springs
  • Standards: CE-conformity, GOST, RoHS
GBP EUR USD JPY
Excl. VAT: £35.79 Incl. VAT: £42.95
Labfacility Part No:
XE-6331-001
Lead Time:
In-Stock
Tariff Code:
90330000
Country of Origin:
United Kingdom
RoHS Compliant:
