IEC 6 Way Thermocouple Selector Switch, Bench Mounting

IEC 6 Way Thermocouple Selector Switch, Bench Mounting

Details

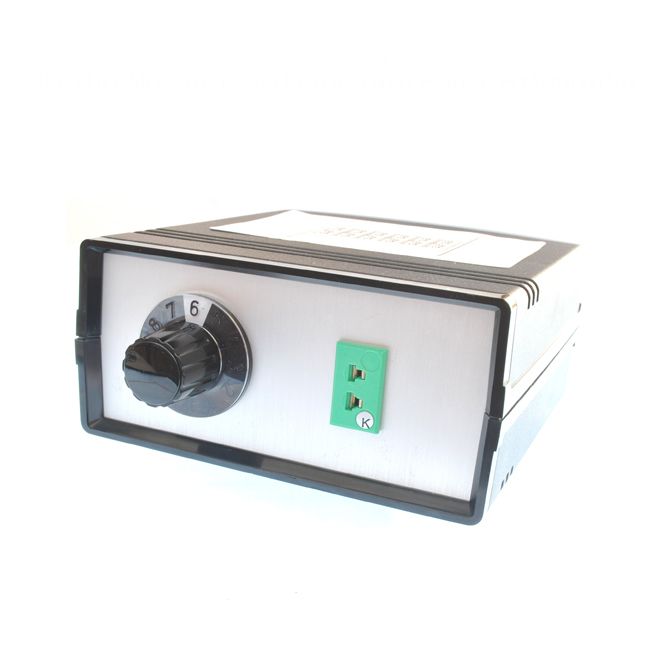

A 6 way selector in a moulded housing with aluminium front and rear panels. The rear inputs are switched via a front mounted rotary selector switch to the single output socket.

Internally wired with thermocouple compensating cable and available with thermocouple types K, J, T, N & R/S.

SPECIFICATION:

  • Construction - Portable / Bench mounting unit in moulded housing with aluminium front and rear panels
  • Size - 130mm wide x 60mm high x 145mm deep
  • Input connectors – 6 miniature compensated thermocouple sockets
  • Output connectors - Single miniature compensated thermocouple socket
  • Available in IEC type K, J, T, N & R/S
GBP EUR USD JPY
Excl. VAT: £92.91 Incl. VAT: £111.49

* Required Fields

Labfacility Part No:
XE-6300
Lead Time:
Select Options
Tariff Code:
90330000
Manufacturer:
Labfacility
